8.4 Turning ON/OFF the Timeout Warning Display
of the PLL Lock
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
Cursor keys
To exit the menu during operation, press ESC located above the
soft keys.
In the procedural explanation below, the phrase “press the cursor
keys” may be used. This phrase refers to the procedures for
selecting items and entering values and character strings. For
details on the procedures, see section 3.14 in the User’s Manual,
IM WT3001E-01EN.

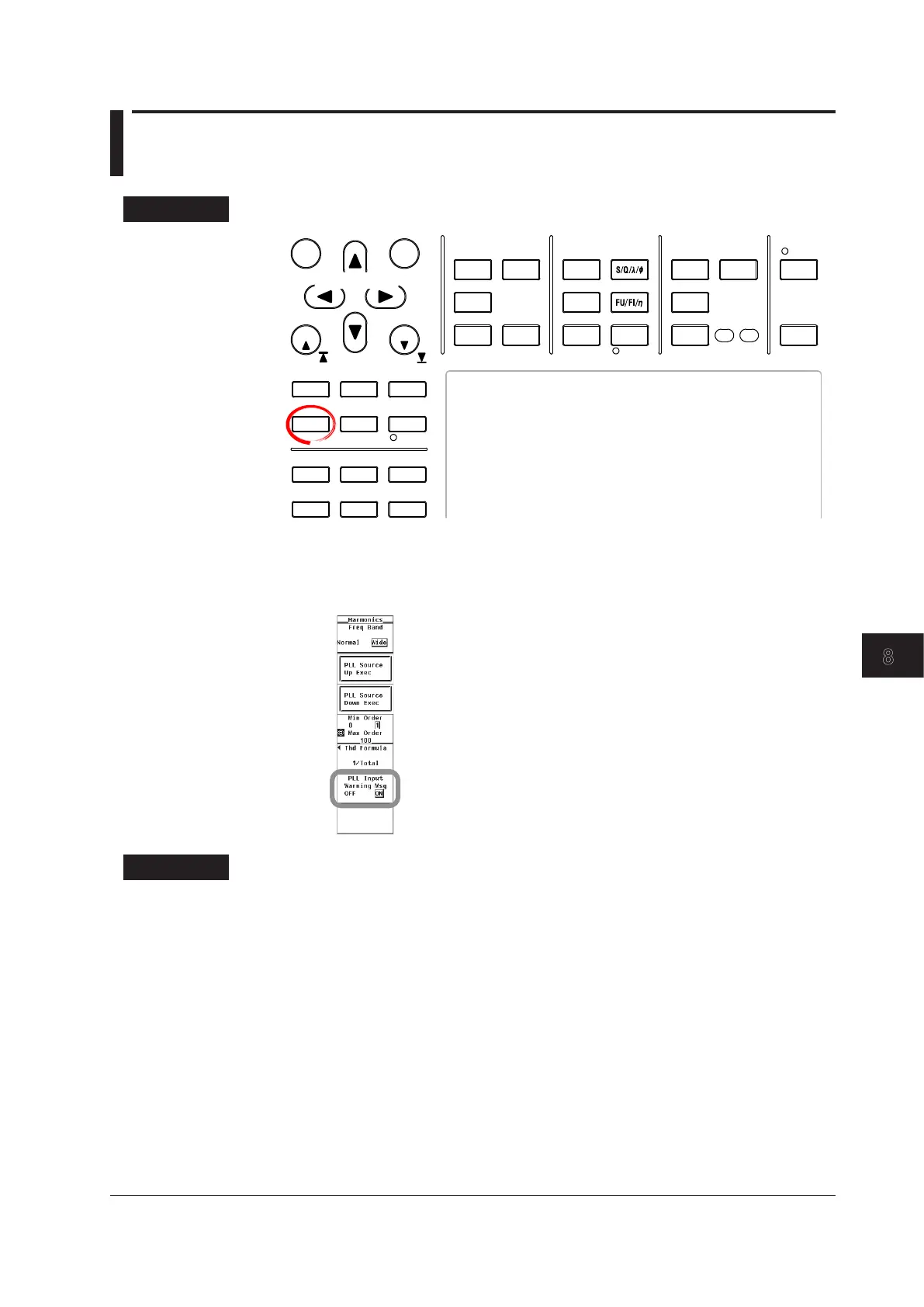

1.
Press HRM SET to display the Harmonics menu.
2.
Press the PLL Input Warning Msg soft key to select ON or OFF.
Explanation
• Turning ON/OFF the Timeout Warning Display of the PLL Lock
You can select whether to display a timeout warning of the PLL lock when the PLL
circuit in this instrument cannot detect the PLL source frequency within the detection
period. This function is valid only in wide bandwidth harmonic measurement mode.
• ON: Displays the alert message.
• OFF: Initializes the memory without displaying the alert message.
• PLL Detection Period
• When the PLL source is not set to Smp Clk: 5 s
• When the PLL source is set to Smp Clk: 40 s
