YOKOGAWA WT3002E User Manual

9-7
IM WT3001E-51EN
IEC Harmonic Measurement (Option)
1
2
3
4
5
6
7
8
9
10
11
12
13
Index

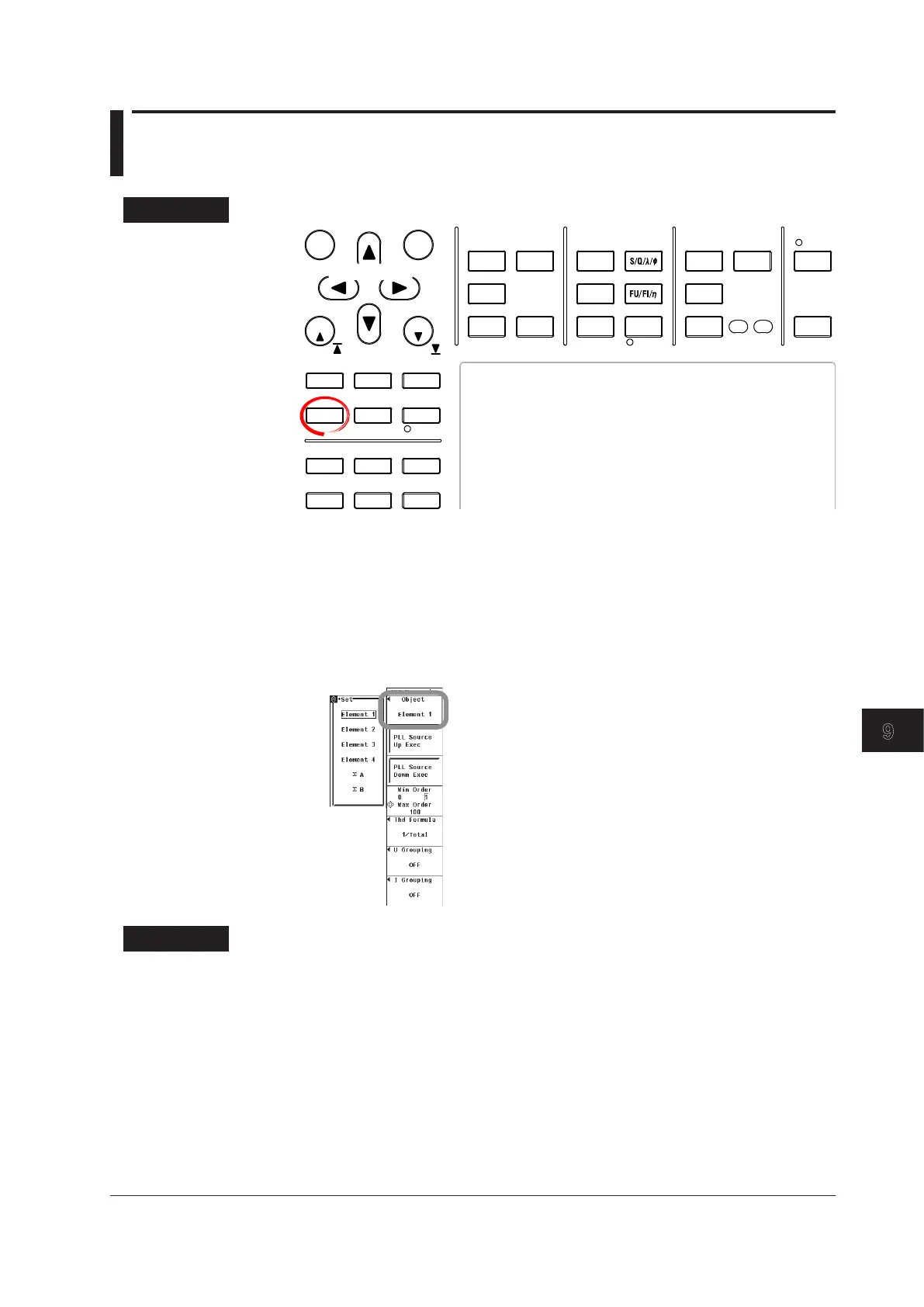

9.4 Selecting the Measured Source
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
Cursor keys
To exit the menu during operation, press ESC located above the
soft keys.
In the procedural explanation below, the phrase “press the cursor
keys” may be used. This phrase refers to the procedures for
selecting items and entering values and character strings. For
details on the procedures, see section 3.14 in the User’s Manual,
IM WT3001E-01EN.
1.
Press HRM SET to display the IEC Harmonics menu.
2.
Press the Object soft key to display the element/wiring unit selection box.
3.
Press the cursor keys to select any of the elements/wiring units starting with
Element1.
4.
Press SET. The symbol for the selected element number or wiring unit and the
numeric data are displayed at the highlighted position.
Explanation
• Selecting the Measured Source
• You can select the measured source from the following elements/wiring units. The
selectable items vary depending on the installed elements.
 Element1,Element2,Element3,Element4,ΣA,andΣB
• If there are no elements that are assigned to the selected wiring unit, there is
no numeric data. Thus, [-------] (no data) is displayed in this case. For example,
ifelementsareassignedtoΣAandnoelementsareassignedtoΣB,thenthe
measurementfunctionforΣBshows[-------](nodata).
