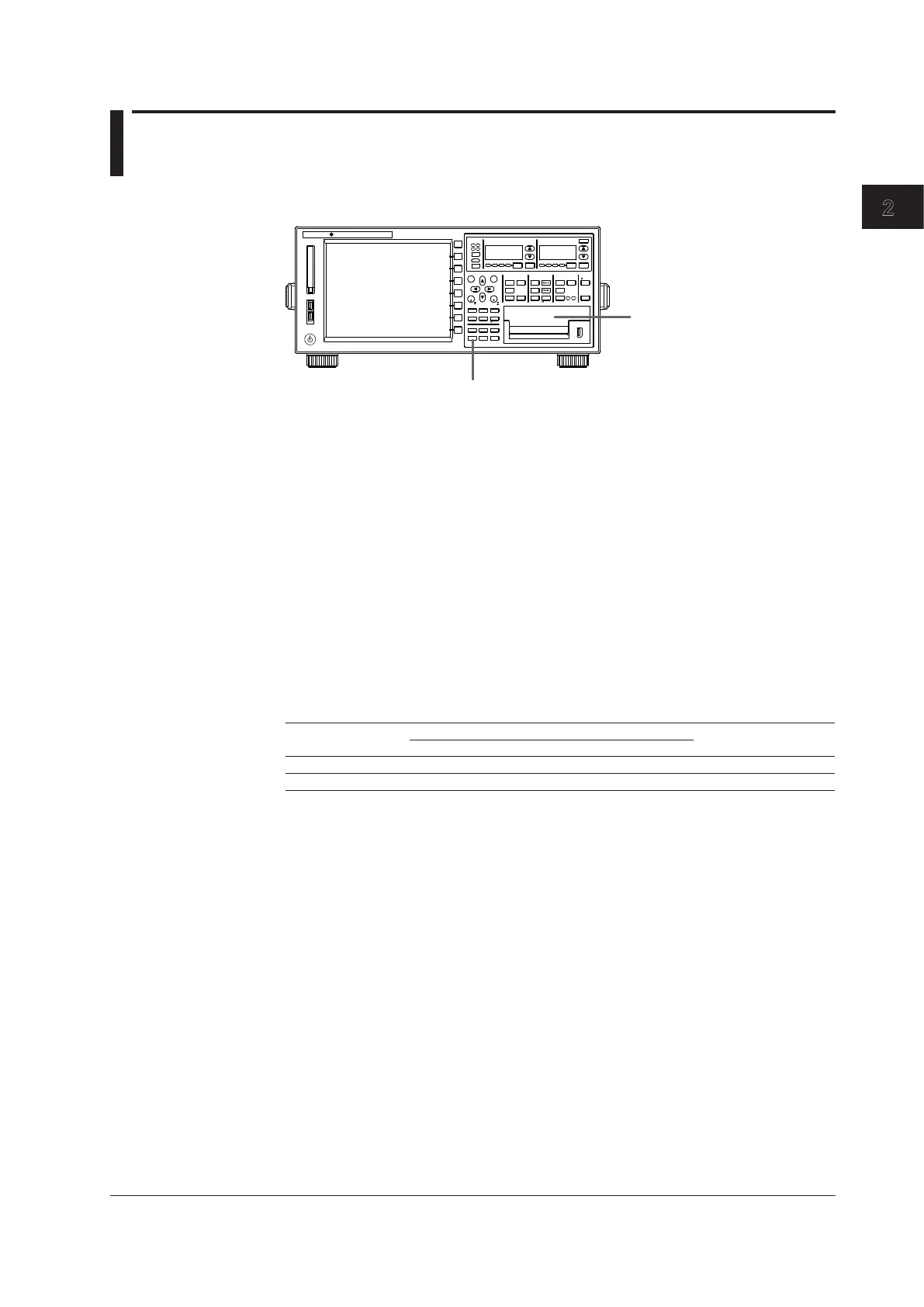

2.1 Names and Functions of Parts of the Built-in
Printer
Front Panel
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGE VOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
2
3 4
COMPEN
ESC
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
YOKOGAWA
PRINT key
Prints the screen image data or numeric data list.
SHIFT+PRINT (MENU) key
Feeds the paper and sets the screen image data and numeric
data list printing.
Built-in printer
Functional Description
Screen images and numeric data list can be printed on the built-in printer. Comments can
be inserted in the screen images.
* For the Procedure to print the screen image on a network printer, see section 5.4. The
numeric data list cannot be printed on a network printer.
When auto print is used, screen images and numeric data lists can be printed
automatically on the built-in printer at the specified print interval. In addition, you can print
screen images and numeric data at the desired time by setting the reservation time for
auto print start/stop. Printing is also possible by synchronizing to the integration time.
Output Format Auto Print
Screen Image Numeric List
Built-in printer Yes Yes Yes
Network printer Yes No No
Yes: Printing is possible.
No: Printing is not possible.
Chapter 2 Built-in Printer (Option)
