11.5 Setting the Number of Computed Points and
Time Window
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGE VOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
2
3 4
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC located
above the soft keys.
In the procedural explanation
below, the phrase “press the
cursor keys” may be used.
This phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14 in the
User’s
Manual, IM WT3001E-01EN.

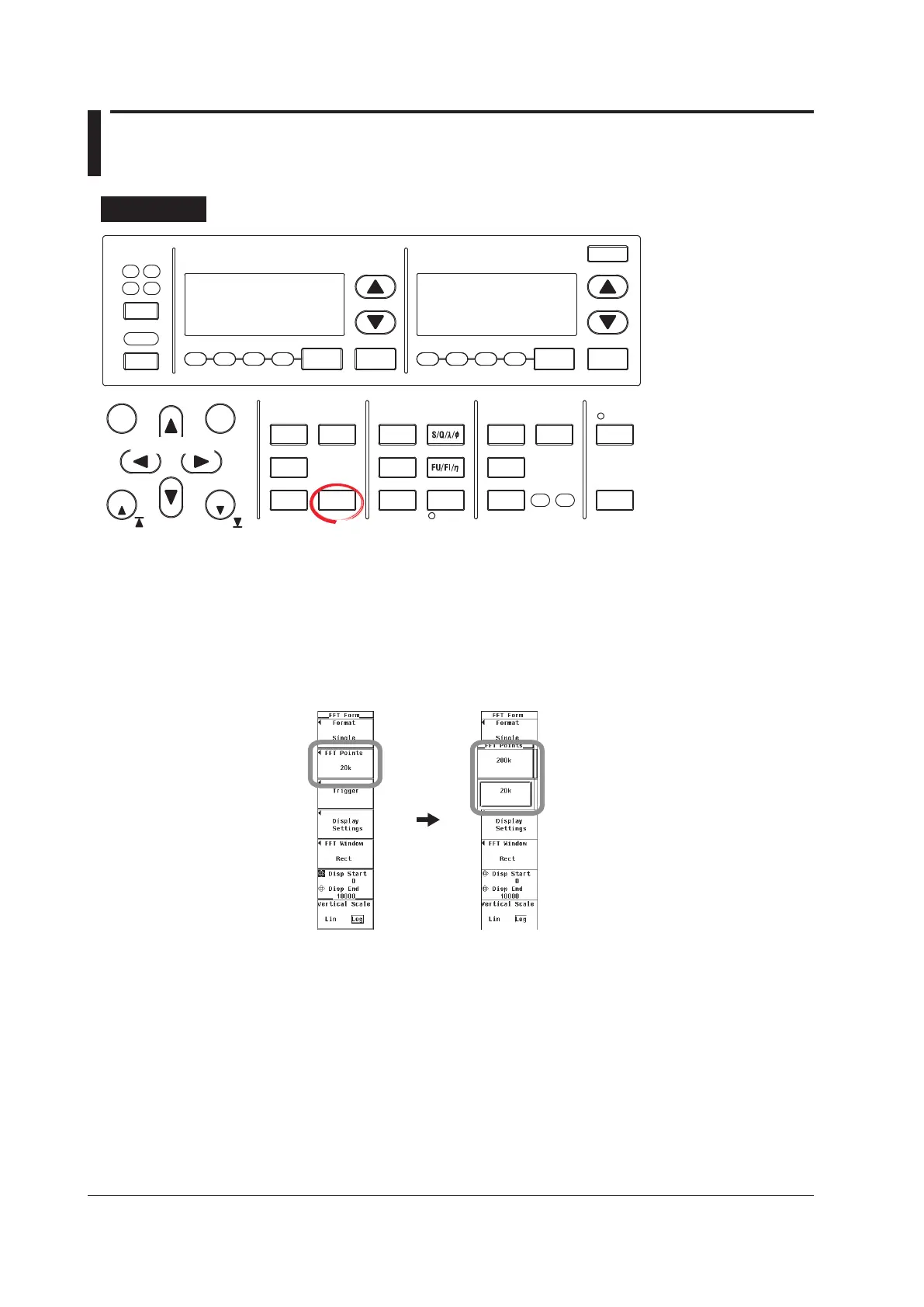

1.
Press FORM to display the FFT Form menu.
If the FFT display is at the lower section of the screen on the split display, press
SHIFT+FORM (LOWER FORM).
• Selecting the Number of Computed Points
2.
Press the FFT Points soft key to display the FFT Points menu.
3.
Press the 200k or 20k soft key to select the number of computed points.
