YOKOGAWA WT3002E User Manual

10-4
IM WT3001E-51EN

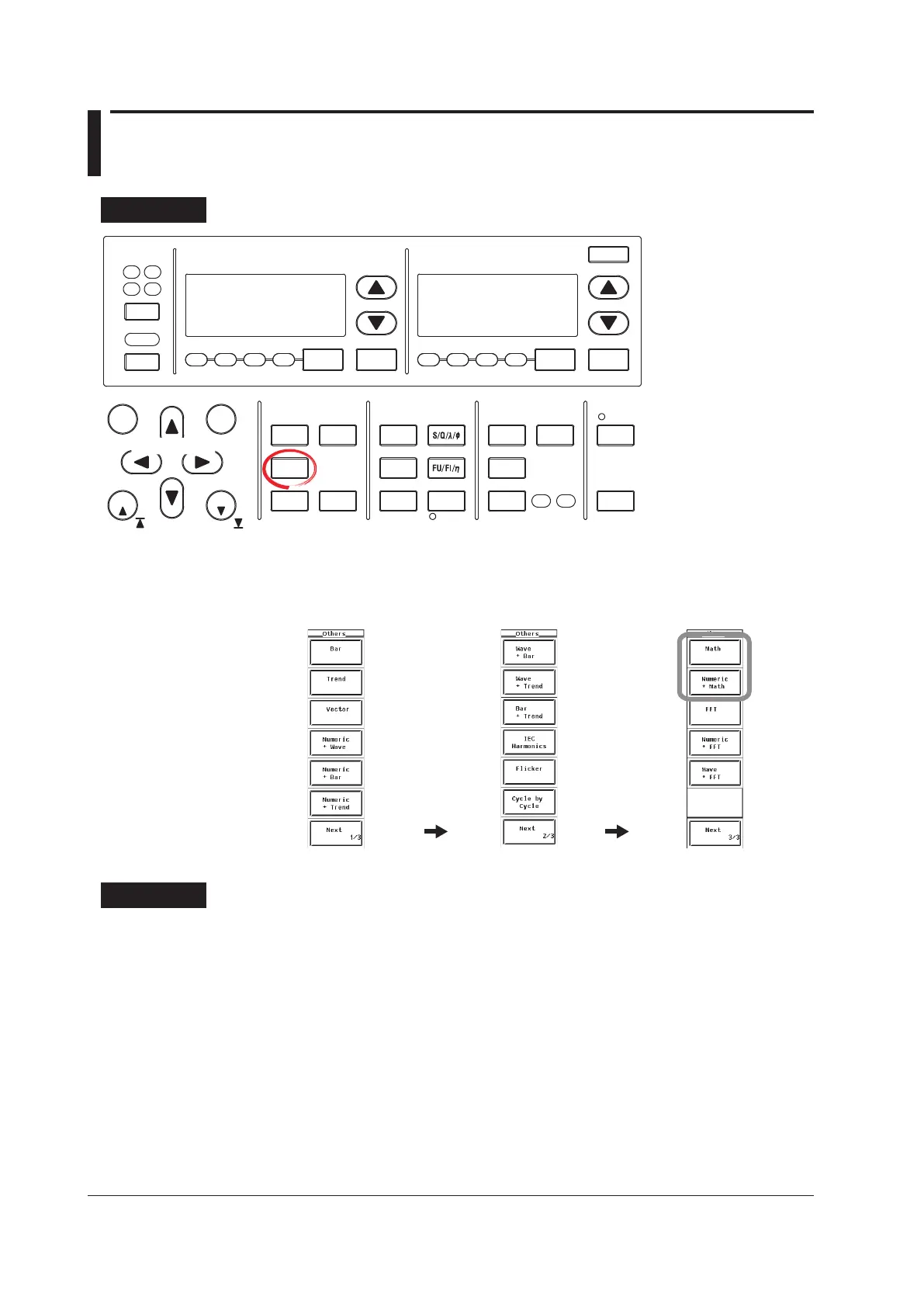

10.3 Setting the Waveform Computation Mode
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGE VOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
2
3 4
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC located
above the soft keys.
In the procedural explanation
below, the phrase “press the
cursor keys” may be used.
This phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14 in the
User’s
Manual, IM WT3001E-01EN.
• Enabling Waveform Computation Mode
1.
Press OTHERS to display the Others menu.
2.
Press the Math or Numeric+Math soft key.
Press the Next1/3
soft key
Press the Next2/3
soft key
Explanation
You can select the display format of the waveform computation data from the list below.
• Display the waveform computation data on the entire screen.
If you select Math, the waveform computation data is displayed on the entire screen.
• Displaying waveform computation data by dividing the screen into halves (split screen)
If you select Numeric+Math, the numeric data and waveform computation data are
displayed separately in the top and bottom windows.
