1.4 Selecting the Analog Range
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY
ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET
MEASURE
SYNC SOURCE
AVG
LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE
IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
Cursor keys
To exit the menu during operation, press ESC located above the
soft keys.
In the procedural explanation below, the phrase “press the cursor
keys” may be used. This phrase refers to the procedures for
selecting items and entering values and character strings. For
details on the procedures, see section 3.14 in the User’s Manual,
IM WT3001E-01EN.
The settings covered in this section apply to the case when the input signal type is set to
Analog. You do not have to specify the settings in this section if the input signal type is
set to Pulse.

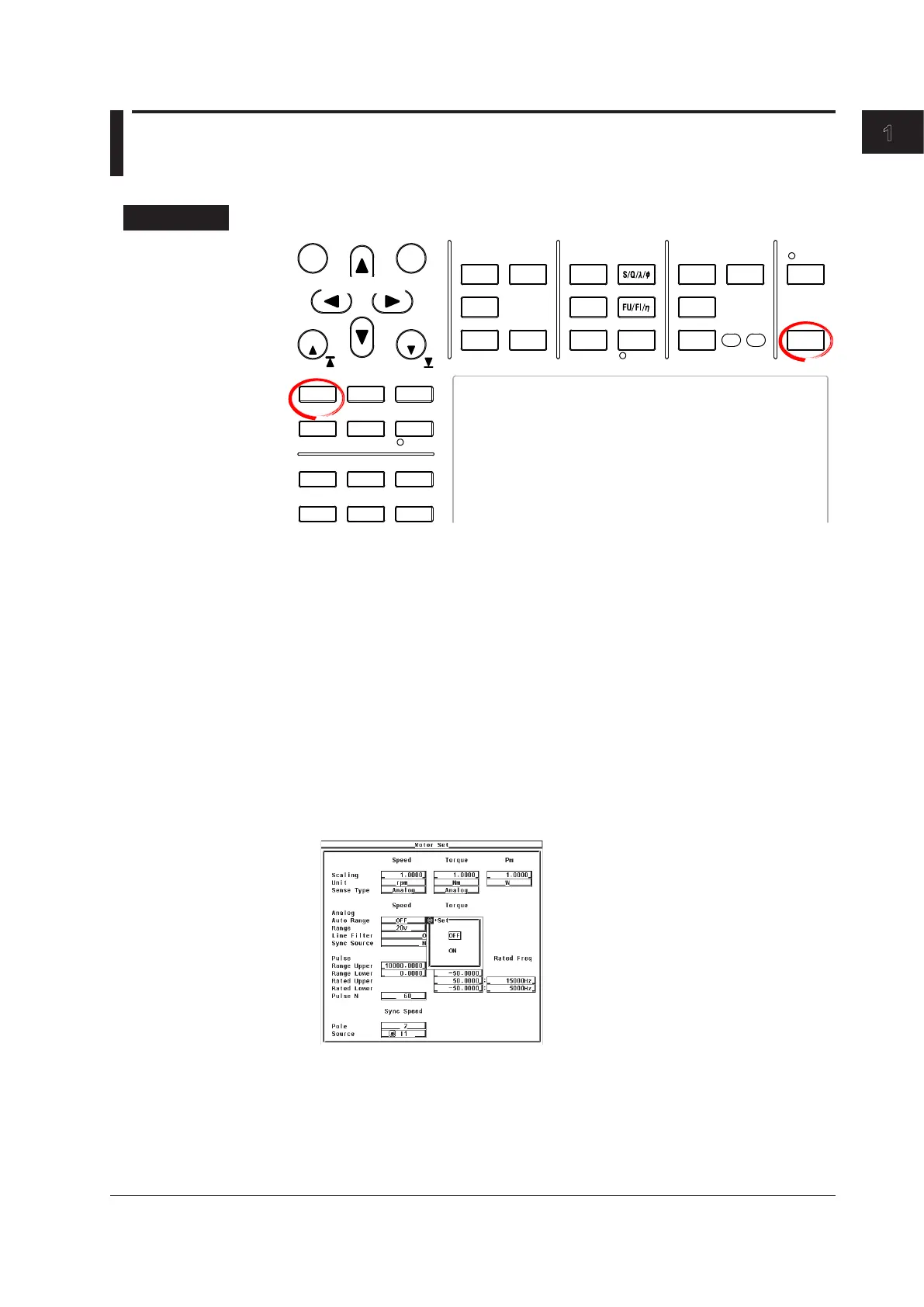

1.
Press SHIFT+SCALING (MOTOR SET) to display the Motor Set dialog box.
• Selecting the Analog Input Range of the Revolution Signal
• Selecting Auto Range
2.
Press the cursor keys to select Auto Range under Speed.
3.
Press SET. An auto range selection box appears.
4.
Press the cursor keys to select ON or OFF.
5.
Press SET to confirm the auto range setting.
To Next Page
