1-16
IM WT3001E-51EN

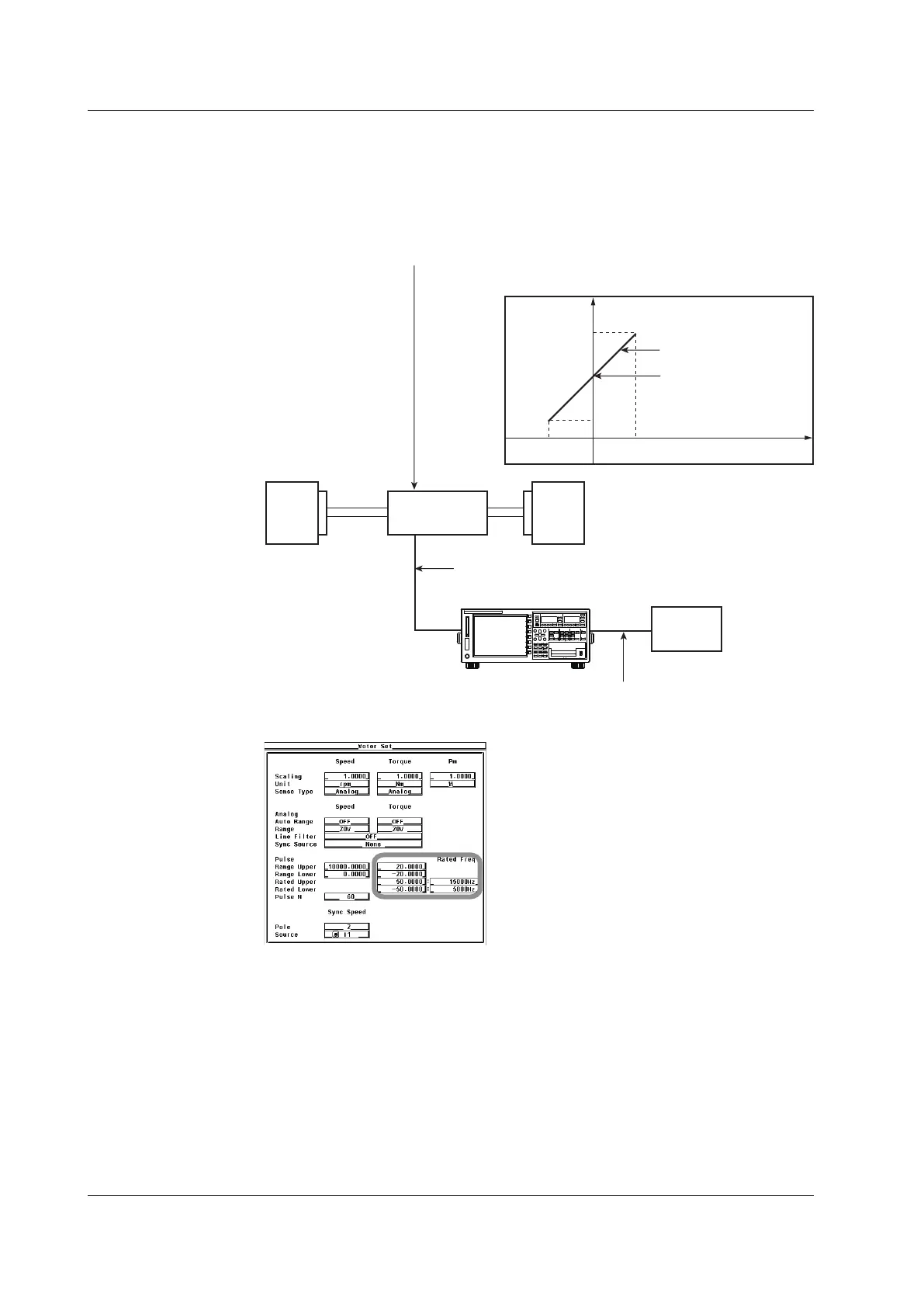

• Relationship between the Pulse Input Range and Pulse Rating of the
Torque Signal
If the torque sensor with the specifications below is used to measure the torque in the
range of –20 N·m to +20 N·m, the pulse input range and pulse rating settings are as
shown in the scree example below.
Specifications of the pulse output torque sensor
Pulse rating (positive): Outputs 15 kHz for 50 N·m
Pulse rating (negative): Outputs 5 kHz for –50 N·m
Torque pulse offset
Number of
output pulse
15 kHz
5 kHz
–50 N·m
Output
axis
50 N·m Input torque
Torque signal
Pulse signal corresponding to –20 N·m to +20 N·m
D/A output signal to the recorder
5 V for –20 N·m to +20 N·m
Pulse input range and pulse rating
settings of the torque signal
Motor Load
Recorder
Pulse output
torque sensor
Slope: Torque pulse
coefficient
1.6 Setting the Pulse Range, Pulse Count, and Pulse Rating
To Next Page
