13-5
IM WT3001E-51EN
Cycle-by-Cycle Measurement
13
Explanation
• Display Related to the Cycle-by-Cycle Measurement

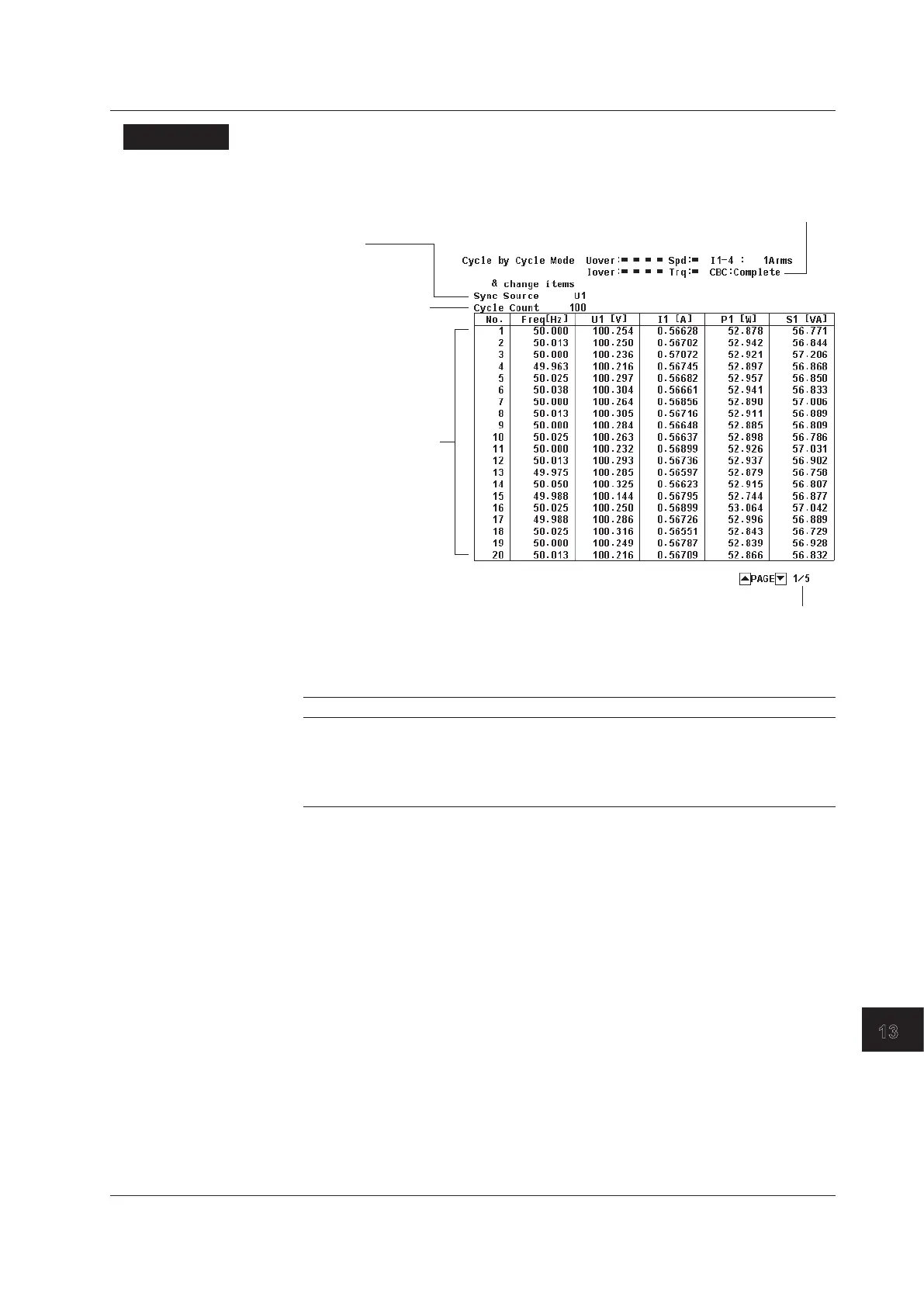

The figure below is a display example of cycle-by-cycle measurement.
Cycle-by-cycle measurement status
Cycle by cycle
Synchronization source
for measurement
Measurement cycle count
Measurement cycle number
List display page
• Cycle-by-Cycle Measurement Status
The following five cycle-by-cycle measurement statuses are available.
Display Meaning
Reset Reset
Start Measurement in progress
Complete Complete
Time Out Timeout
Freq Err Frequency error
• Limitations on Changing the Measurement Mode
This instrument cannot switch to cycle-by-cycle measurement mode in the following
conditions.
• When the master/slave synchronization measurement is set to slave.
• When the integration function is started or stopped.
• When auto print is ON.
• While storage or recall operation is in progress.
• While the storage medium is being accessed.
• While saving waveform sampling data to the storage medium.
13.2 Setting the Cycle-by-Cycle Measurement Mode
