• Turning ON/OFF Cursor Measurement
3.

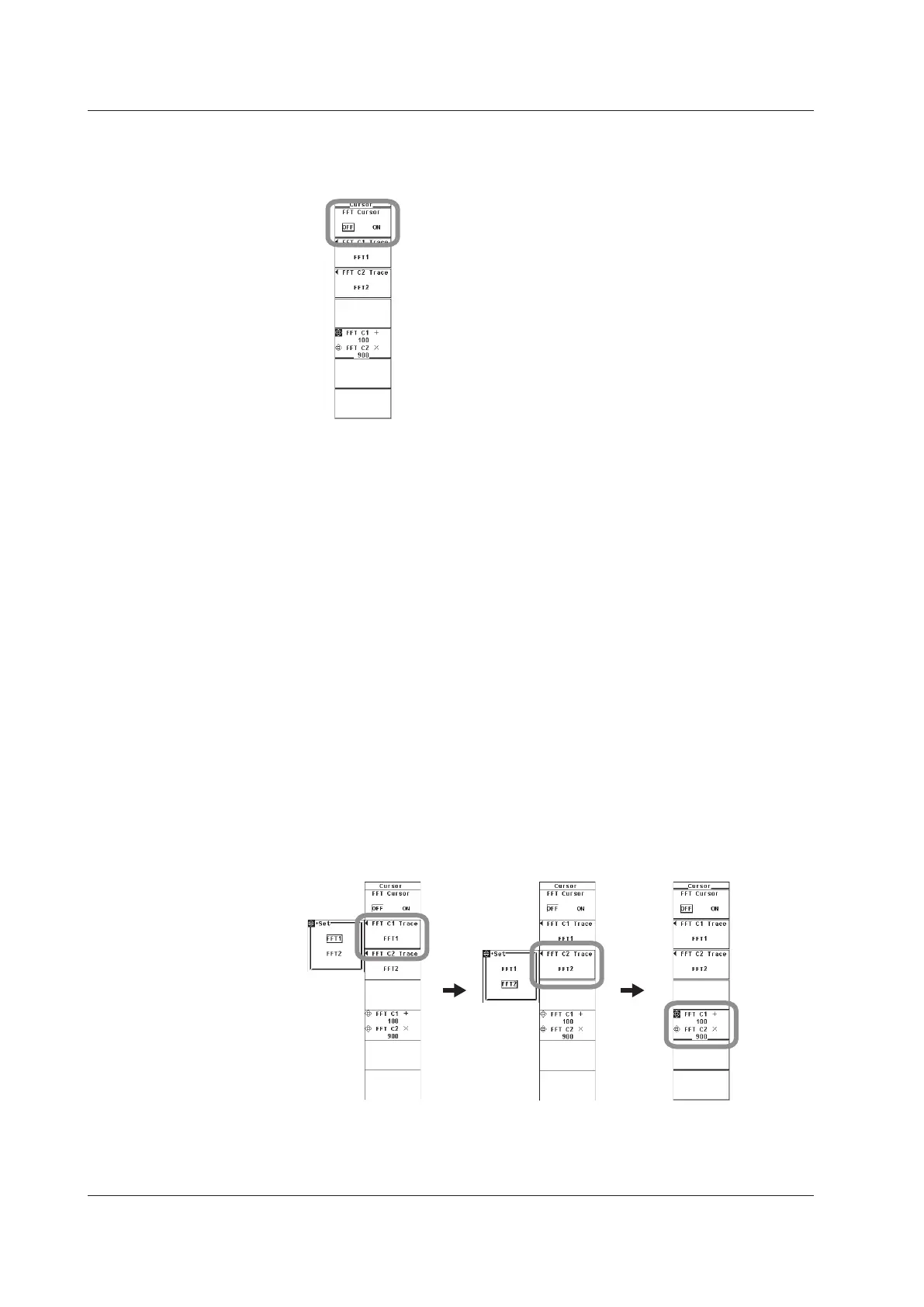

Press the FFT Cursor soft key to select ON or OFF.
If ON is selected, the result of the cursor measurement is displayed.
• Selecting the Source FFT for Cursor Measurement
• Selecting the Source FFT for Cursor +
4.
Press the FFT C1 Trace soft key to display the source FFT selection box.
5.
Press the cursor keys to select FFT1 or FFT2.
6.
Press the SET key to confirm the source FFT.
• Selecting the Source FFT for Cursor x
4.
Press the FFT C2 Trace soft key to display the source FFT selection box.
5.
Press the cursor keys to select FFT1 or FFT2.
6.
Press the SET key to confirm the source FFT.
• Moving the Cursors
7.
Press the FFT C1 +/FFT C2 x soft key to set the jog shuttle target to FFT C1 +,
FFT C2 x, or both FFT C1 + and FFT C2 x.
• If you select FFT C1 +, the position of cursor + can be moved.
• If you select FFT C2 x, the position of cursor x can be moved.
• If you select both FFT C1 + and FFT C2 x, the two cursors can be moved without
changing the spacing between the two. The value of the digit being specified by FFT
C1 + changes.
8.
Press the cursor keys to set the move the cursors.
11.9 Cursor Measurement
