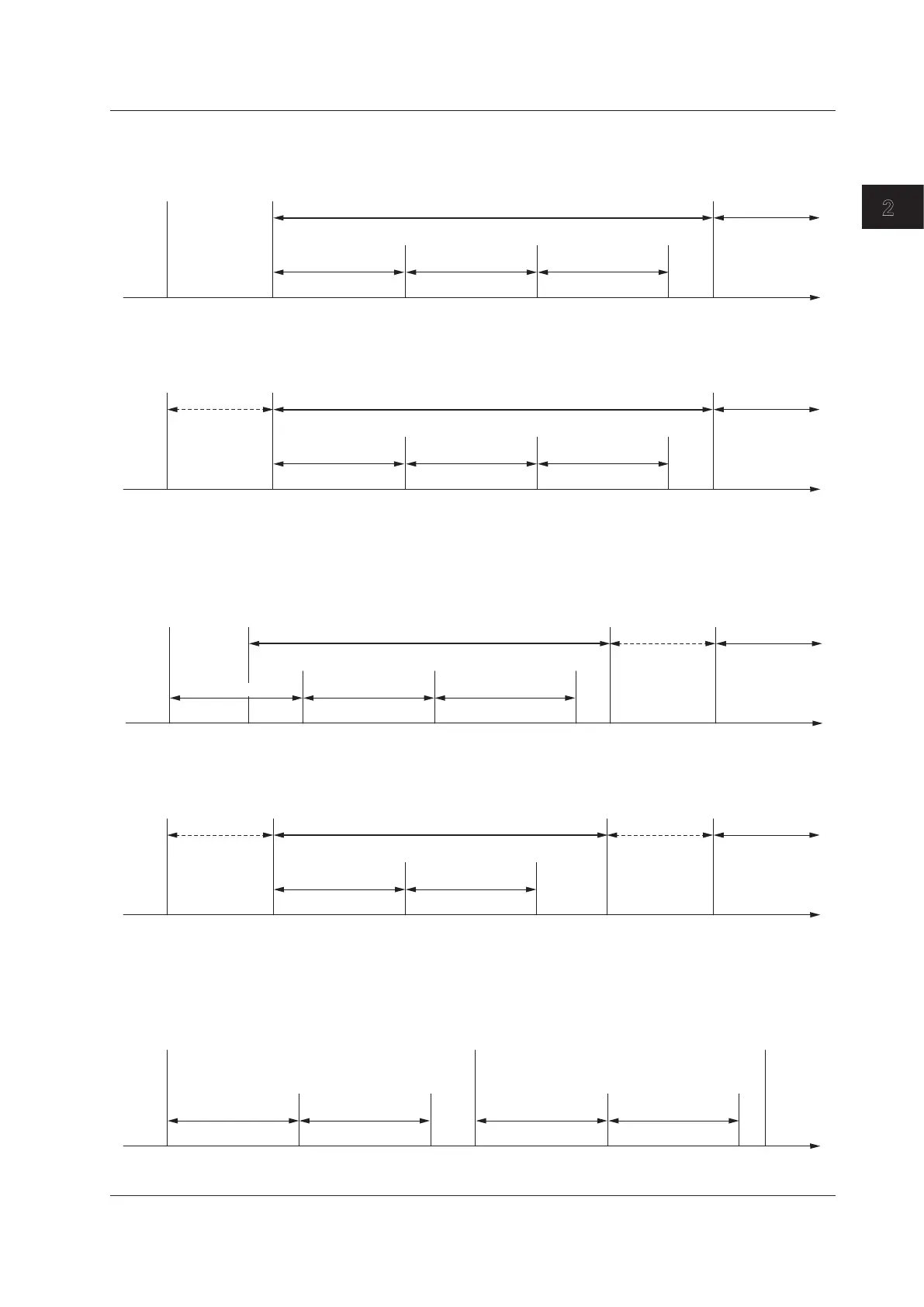

• Print Timing of the Print Timer Synchronized Auto Print
• When the start time is before turning Auto Print ON
Print
PrintPrint
Time
PRINT key illuminated
Print interval Print intervalPrint interval
Start time
Print Stop
Auto print OFF or end timeAuto Print ON
PRINT key
turned OFF
• When the start time is after turning Auto Print ON
Print
PrintPrint
Time
PRINT key illuminated
Print interval Print intervalPrint interval
Start time
Print Stop
Auto print OFF or end timeAuto Print ON
PRINT key
turned OFF
PRINT key
blinking
• Print Timing of the Integration Synchronized Auto Print
Auto print is executed based on the integration start time.
• When integration start is before turning Auto Print ON
No printing
PrintPrint
Time
PRINT key illuminated
Print interval Print interval
Print Print
Integration stopIntegration start Auto Print ON Auto Print OFF
PRINT key
turned OFF
PRINT key
blinking
Print interval
• When integration start is after turning Auto Print ON
PrintPrint
Time
PRINT key illuminated
Print interval Print interval
Print Print
Integration stopIntegration start Auto Print OFFAuto Print ON
PRINT key
turned OFF
PRINT key
blinking
PRINT key
blinking
• Integration time and print interval during repetitive integration mode or real-time
repetitive integration mode
When the integration timer expires, auto print is repeated based on that time.
No printingPrintPrint Print
Time
Print interval Print interval Print interval Print interval
Print PrintPrint
Integration stopIntegration start Integration time up (integration restart)
2.5 Auto Print
