3-1
IM WT3001E-51EN
D/A Output and Remote Control (Option)
3

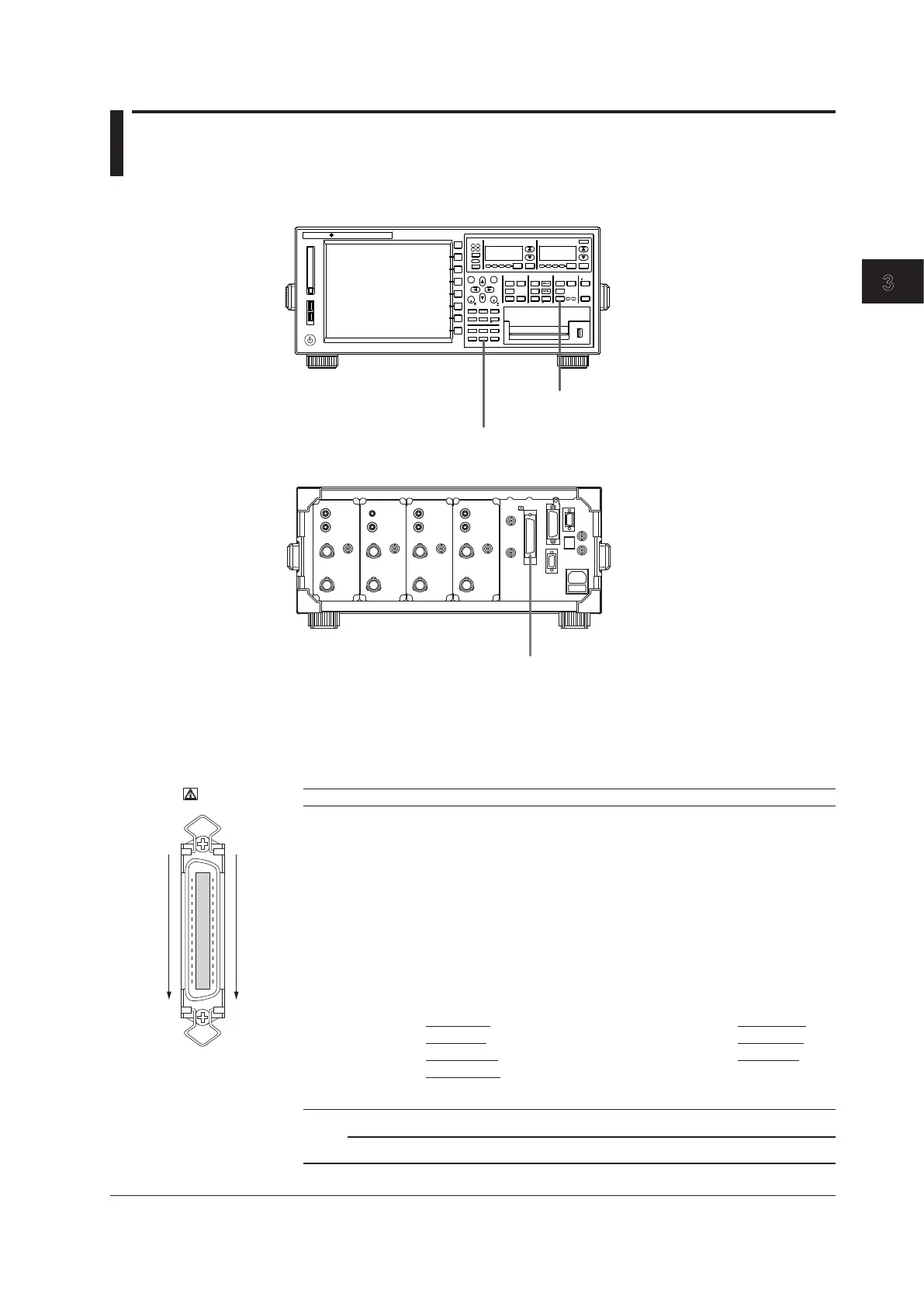

3.1 Part Names and Functions of D/A Output
Front Panel
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGE VOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY
ITEM & ELEMENT
2
3 4
COMPEN
ESC
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
RESET SET
PAGE PAGE
SCALING
HRM SET
MEASURE
SYNC SOURCE
AVG
LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE
IMAGE SAVE
HELP
NUMERIC WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
YOKOGAWA
MISC
Sets the items necessary for D/A output.
INTEG
Sets the rated time of integrated D/A output.
Rear Panel
D/A OUTPUT
D/A output and remote control (option)
D/A output: Outputs numeric data that has been
converted to analog DC voltage.
Remote control: Controls this instrument using an
external signal between 0 to 5 V.
Pin Arrangement and Signal Assignment of the D/A Output Connector
The pin arrangement and assignments of the connector are as follows:
Pin No. Signal Name Pin No. Signal Name
1 D/A CH1 19 D/A CH2
2 D/A CH3 20 D/A CH4
3 D/A CH5 21 D/A CH6
4 D/A CH7 22 D/A CH8
5 D/A CH9 23 D/A CH10
6 D/A CH11 24 D/A CH12
7 D/A CH13 25 D/A CH14
8 D/A CH15 26 D/A CH16
9 D/A CH17 27 D/A CH18
10 D/A CH19 28 D/A CH20
11 D/A COM 29 D/A COM
12 D/A COM 30 D/A COM
13 D/A COM 31 D/A COM
14
EXT PRINT 32 EXT RESET
15
EXT STOP 33 EXT START
16
EXT SINGLE 34 EXT HOLD
17
INTEG BUSY 35 EXT COM
18 EXT COM 36 EXT COM
Note
D/A COM and EXT COM are connected internally.
1
D/A OUTPUT
Chapter 3 D/A Output and Remote Control (Option)
