User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
30/94

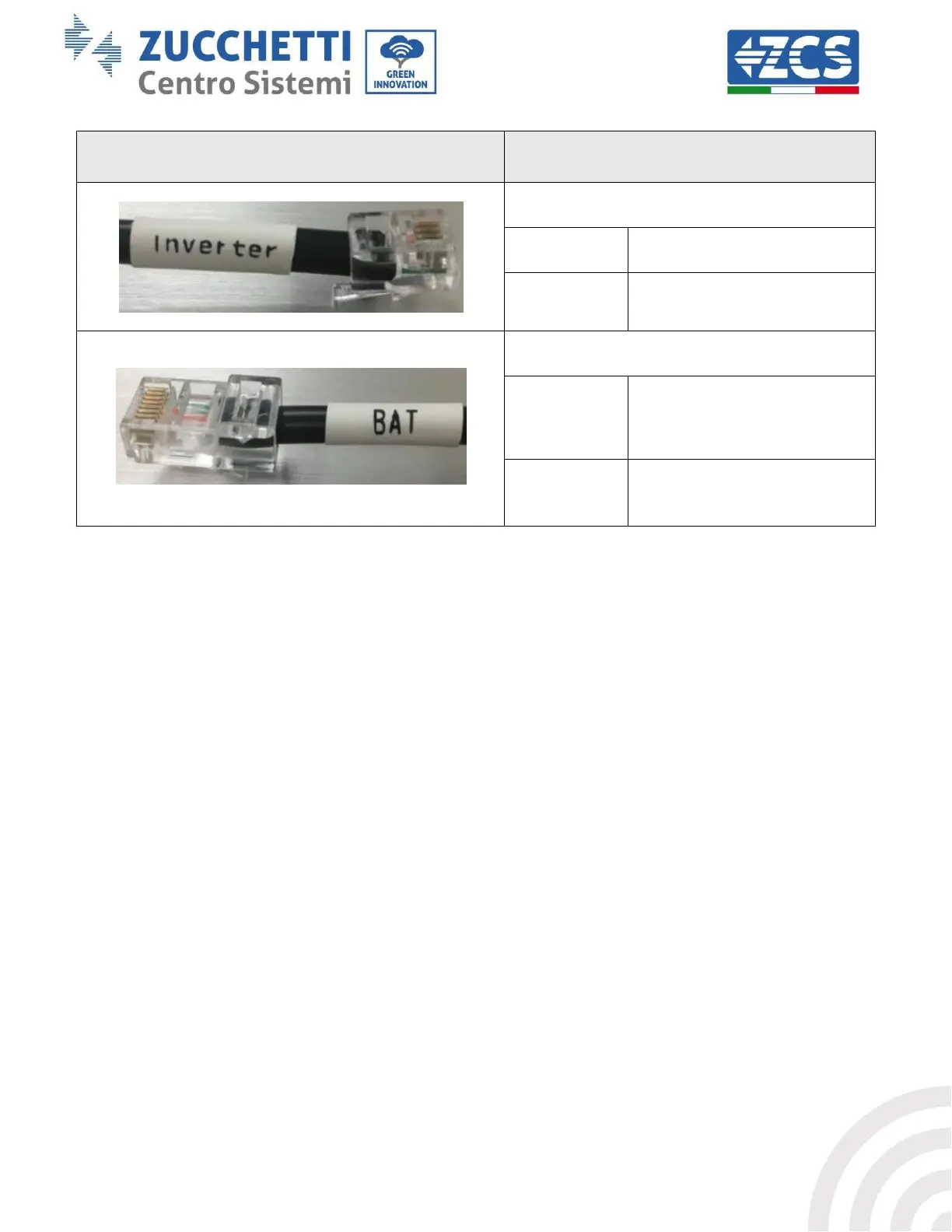

Communication cable between the battery and the
1PH HYD3000-HYD6000-ZSS inverter
CAN communication
1PH HYD3000-HYD6000-ZSS
CAN port
CANHpin1 CANLpin2
RS485 port
485Apin3 485Bpin4
PYLONTECH
CAN port
CANHpin4 CANLpin5
RS485 port
485Apin1 & pin8
485Apin2 & pin7
Figure 27 – End of Pylontech communication cable with inverter-side terminal in the CAN input
Step 7: Replace the waterproof cover and secure it with the 4 screws; tighten the cable gland.
Step 8: Below are some simplified diagrams showing the correct and incorrect installation of the current
sensors.
As shown in the figure, the CTa current sensor must be positioned on the phase wire coming from the
import/export meter so that all the incoming and outgoing power flows can be read.
