User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID

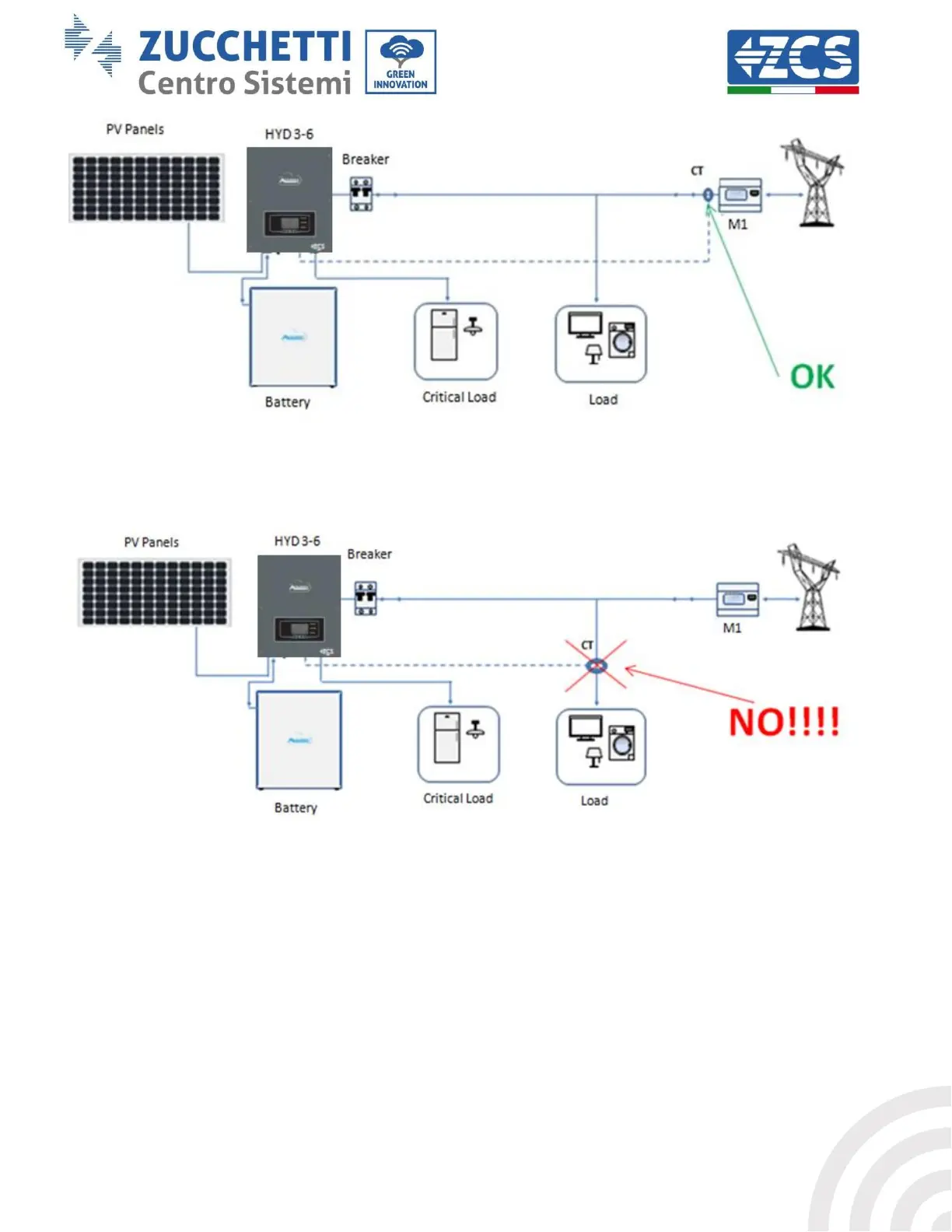

Figure 28 – Correct positioning of the current sensors
The figure below shows an incorrect positioning of the CTa sensor (consumption reading)
Figure 29 – Incorrect positioning of the current sensors (CTa reading of the utilities only)
In case of multiple phase cables connected in parallel directly under the import/export meter, make sure all the
phase cables pass through the CTa sensor, as shown in the figure.
