User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID

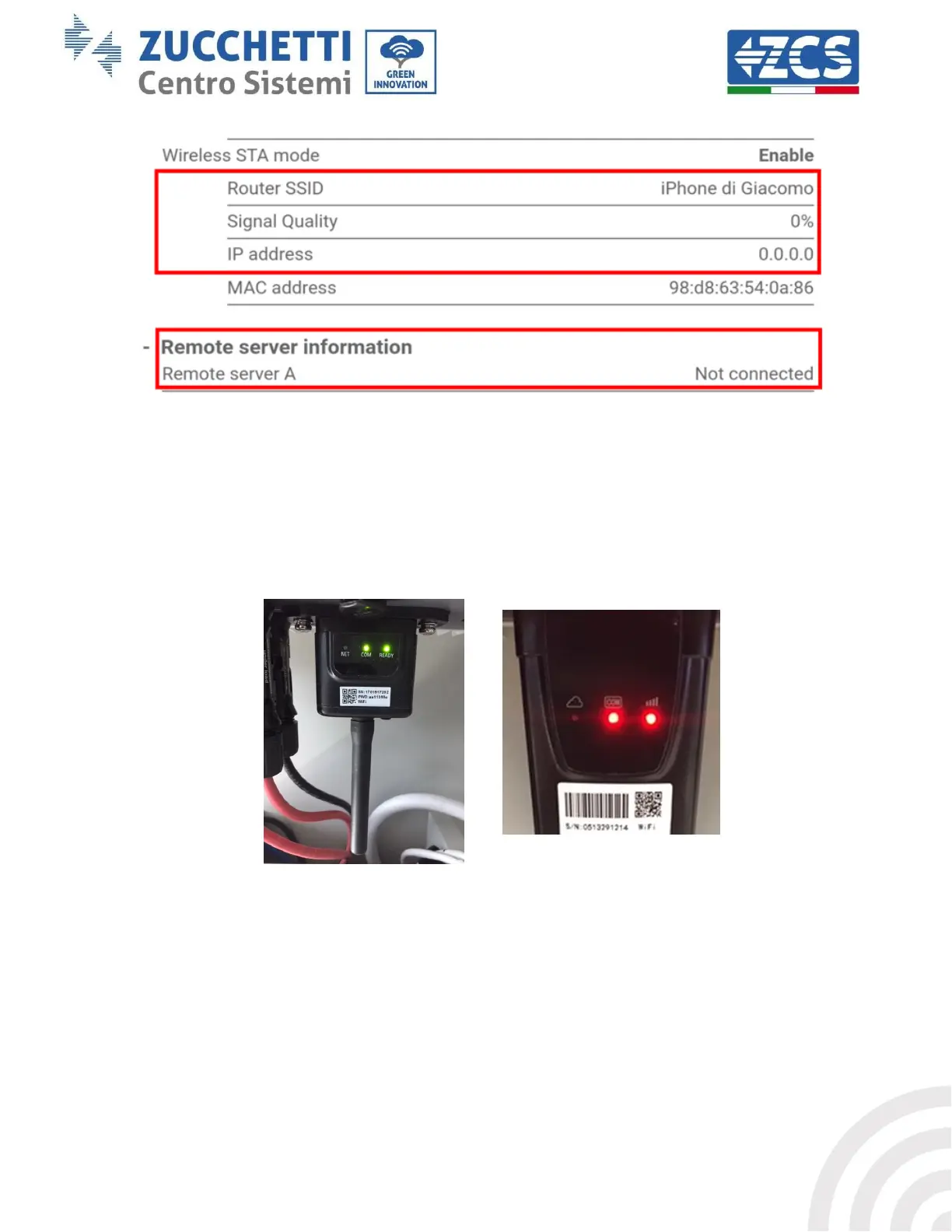

Figure 56 – Status screen
Status of LEDs present on the adapter
1) Initial status:
NET (left LED ): off
COM (central LED): steady on
READY (right LED): flashing on
Figure 57 - Initial status of LEDs
2) Final status:
NET (left LED): steady on
COM (central LED): steady on
READY (right LED): flashing on
