USB Charge/Com Snap-on Cup
The USB Charge/Com Snap-on Cup:
• Provides 5 VDC power to operate the device and to charge the battery.
• Provides power and/or communication with the host computer over USB to the device.

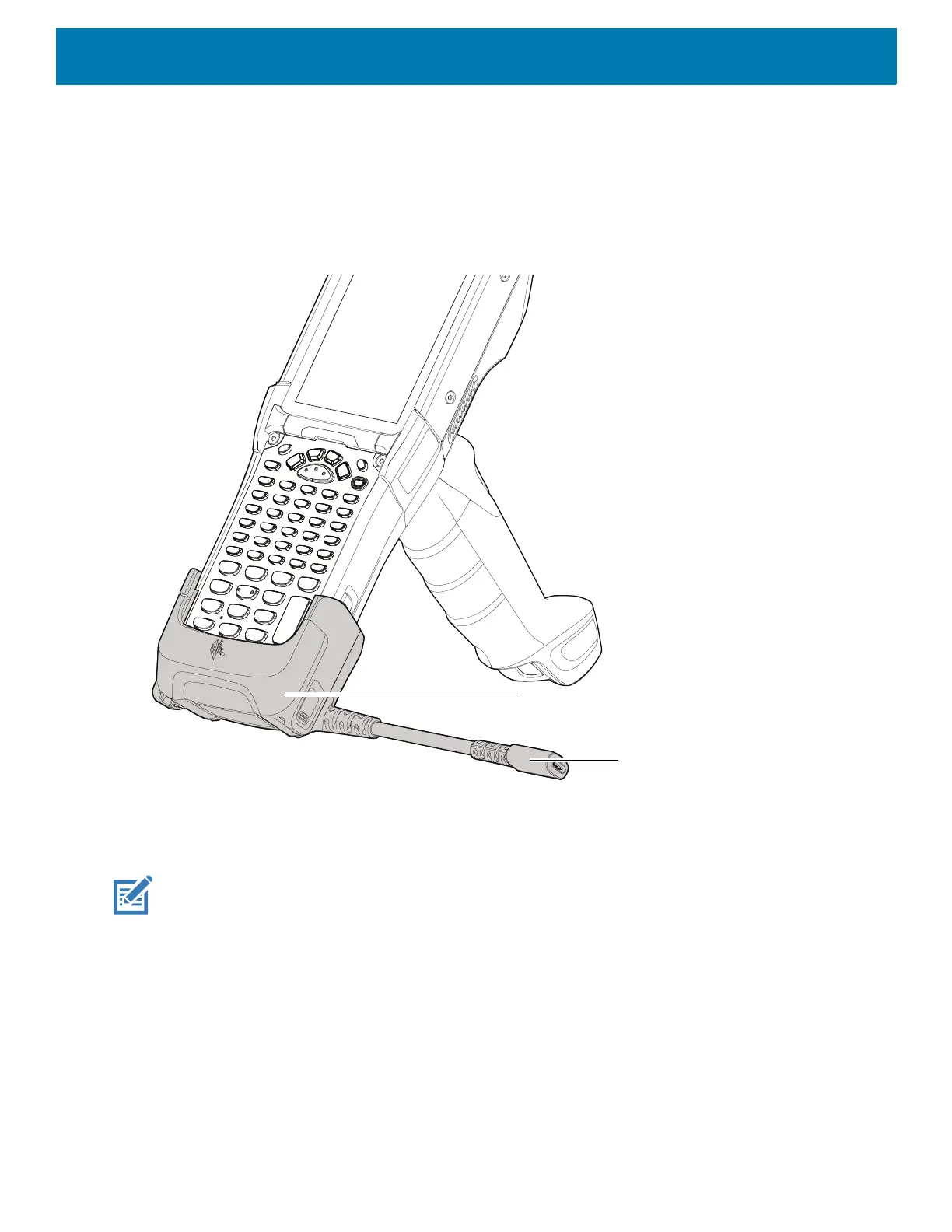

Figure 28 USB Charge/Com Snap-on Cup
Connecting to the Device
Insert the device straight onto the USB Charge/Com Snap-on Cup until the device touches the bottom of the
cable cup.
Pigtail with USB Socket
USB Charge/Com Snap-on Cup
NOTE: To function properly, remove the lower part of the rubber boot or the entire rubber boot before placing the
device in a charging cradle.
