Zebra MC93 Series Integrator Guide

DataWedge
97

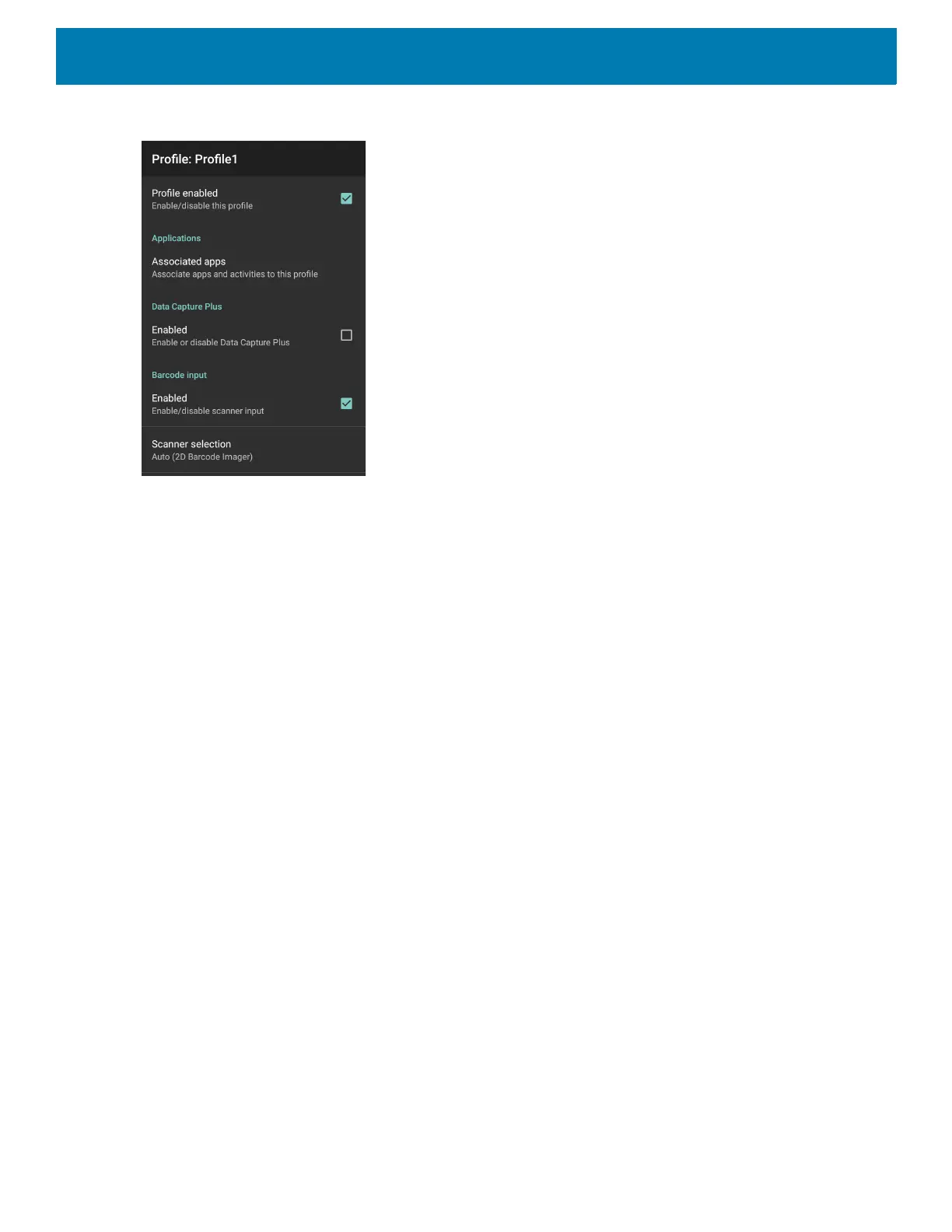

Figure 91 Profile Configuration Screen
The configuration screen lists the following sections:
• Profile enabled
• Applications
• Data Capture Plus (DCP)
• Barcode Input
• Keystroke output
• Intent Output
• IP Output.
Associating Applications
Use Applications option to associate applications with this profile. User created profiles should be associated
with one or more applications and its activities.
1. Touch Associated apps. A list of applications/activities associated with the profile displays. Initially the list
does not contain any applications/activities.

Zebra MC93 Series Specifications

General

Operating Temperature	-4°F to 122°F/-20°C to 50°C
Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Operating System	Android 11
RAM	4 GB
Storage	32 GB Flash
Battery	7000 mAh
Connectivity	USB 2.0
Camera	13 MP rear camera
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete per MIL-STD 810G across operating temperature range
Sealing	IP65
Touch Panel	Capacitive Corning Gorilla Glass
Keypad Options	Numeric, Function Numeric, Alpha-Numeric
Scanning	1D/2D
Wireless LAN	802.11 a/b/g/n/ac
Audio	Speaker, microphone
Display	4.3 in. WVGA (800 x 480), color TFT-LCD with backlight
