Zebra MC93 Series Integrator Guide

DataWedge
95

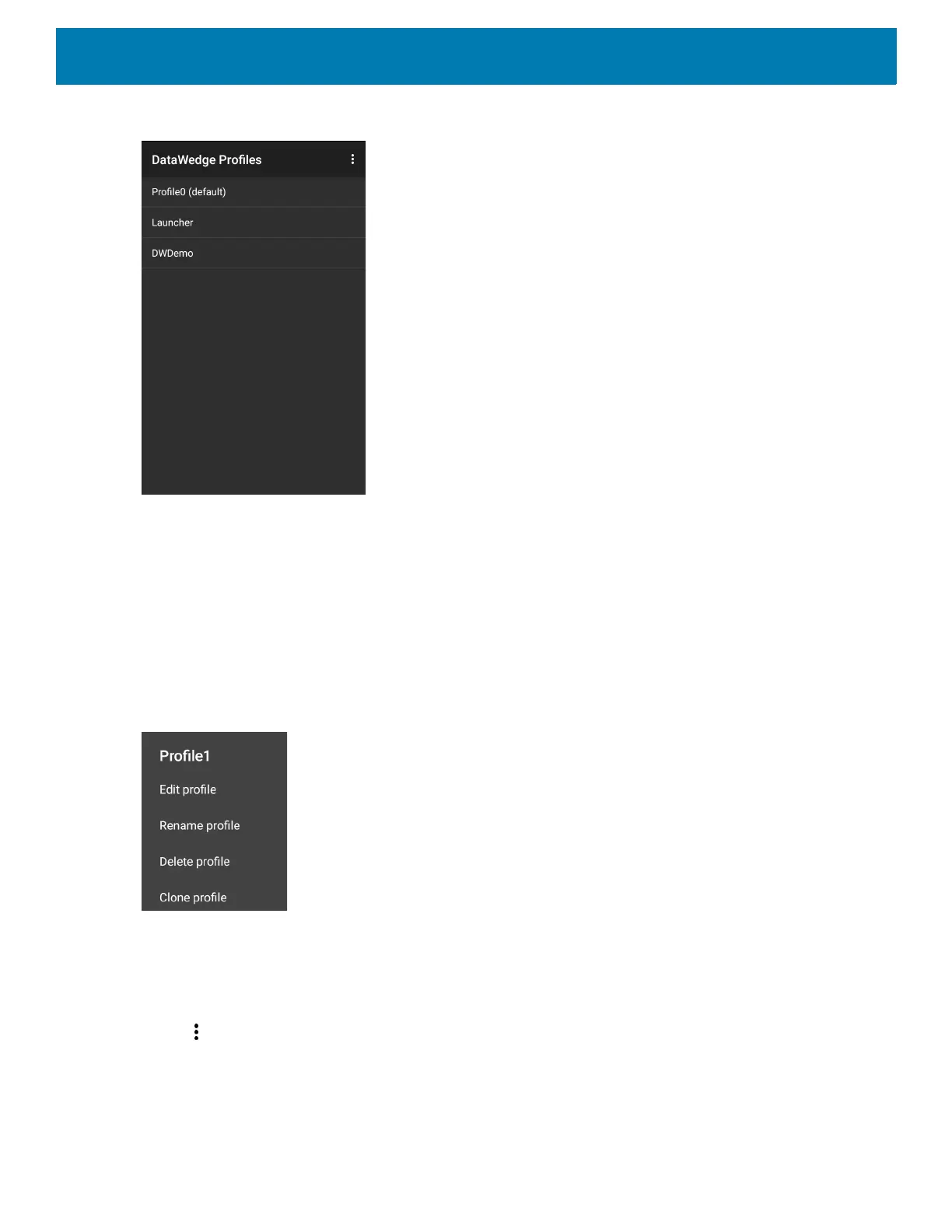

Figure 87 DataWedge Profiles Screen
Profile names are color coded. Enabled profiles are white and disabled profiles are gray.
To configure a profile touch the profile name.
Profile Context Menu
Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected
profile.
Figure 88 Profile Context Menu
The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.
Options Menu
Touch to open the options menu.

Zebra MC93 Series Specifications

General

Operating Temperature	-4°F to 122°F/-20°C to 50°C
Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Operating System	Android 11
RAM	4 GB
Storage	32 GB Flash
Battery	7000 mAh
Connectivity	USB 2.0
Camera	13 MP rear camera
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete per MIL-STD 810G across operating temperature range
Sealing	IP65
Touch Panel	Capacitive Corning Gorilla Glass
Keypad Options	Numeric, Function Numeric, Alpha-Numeric
Scanning	1D/2D
Wireless LAN	802.11 a/b/g/n/ac
Audio	Speaker, microphone
Display	4.3 in. WVGA (800 x 480), color TFT-LCD with backlight
