Zebra MC93 Series Integrator Guide

Settings
70
2. Touch Wi-Fi > Wi-Fi preferences > Advanced > Wi-Fi Direct. The device begins searching for another
Wi-Fi Direct device.

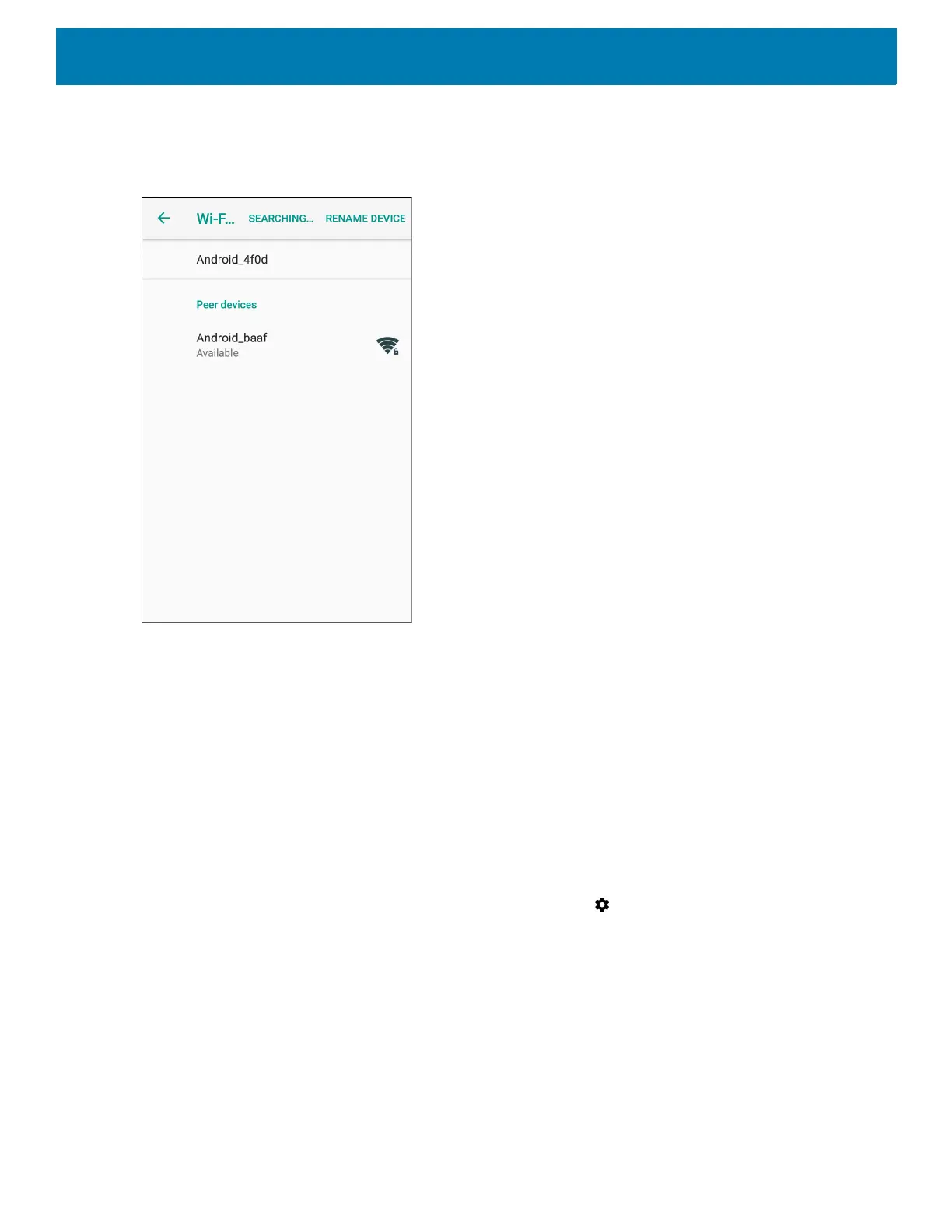

Figure 68 Wi-Fi Direct Screen
3. Under Peer devices, touch the other device name.
4. On the other device, select Accept.
5. Connected appears on the device. On both devices, in their respective Wi-Fi Direct screens, the other
device name appears in the list.
WPS Push Button
Wi-Fi Protected Setup (WPS) is a feature allowing devices to easily connect to Wi-Fi access points without
typing a long password.
To use a wireless router WPS button:
1. On the device, swipe down from the status bar and then touch .
2. Touch Wi-Fi > Wi-Fi preferences > Advanced > WPS Push Button. A dialog box displays with an Pin
number.

Zebra MC93 Series Specifications

General

Operating Temperature	-4°F to 122°F/-20°C to 50°C
Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Operating System	Android 11
RAM	4 GB
Storage	32 GB Flash
Battery	7000 mAh
Connectivity	USB 2.0
Camera	13 MP rear camera
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete per MIL-STD 810G across operating temperature range
Sealing	IP65
Touch Panel	Capacitive Corning Gorilla Glass
Keypad Options	Numeric, Function Numeric, Alpha-Numeric
Scanning	1D/2D
Wireless LAN	802.11 a/b/g/n/ac
Audio	Speaker, microphone
Display	4.3 in. WVGA (800 x 480), color TFT-LCD with backlight
