Zebra MC93 Series Integrator Guide

Settings
86
Backup
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
To save the backup data, touch BACKUP > Yes.

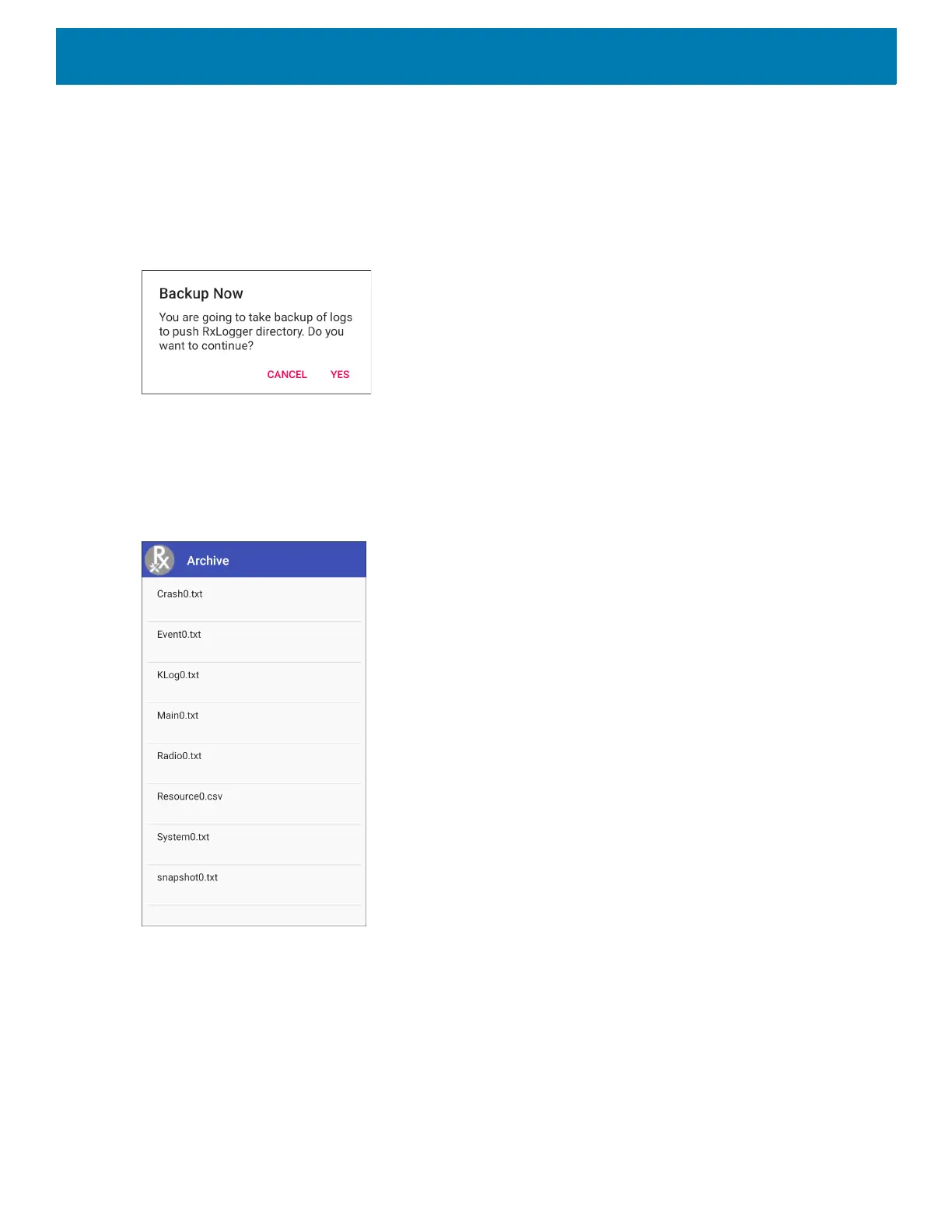

Figure 81 Backup Message
Archive Data
View all the RxLogger logs stored in the default RxLogger directory. Logs viewed in the Archive window are not
live.
Figure 82 Archive
To view the log files, touch ARCHIVE DATA and then touch a log file.
Overlay View
Use Overlay View to display RxLogger information while using other apps or on the home screen. Overlay
View is accessed using the Main Chat Head.

Zebra MC93 Series Specifications

General

Operating Temperature	-4°F to 122°F/-20°C to 50°C
Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Operating System	Android 11
RAM	4 GB
Storage	32 GB Flash
Battery	7000 mAh
Connectivity	USB 2.0
Camera	13 MP rear camera
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete per MIL-STD 810G across operating temperature range
Sealing	IP65
Touch Panel	Capacitive Corning Gorilla Glass
Keypad Options	Numeric, Function Numeric, Alpha-Numeric
Scanning	1D/2D
Wireless LAN	802.11 a/b/g/n/ac
Audio	Speaker, microphone
Display	4.3 in. WVGA (800 x 480), color TFT-LCD with backlight
