4-Slot Spare Battery Charger Rack Installation
Use the Rack/Wall Mount Bracket to mount four 4-Slot Spare Battery Chargers on a rack. When installing on a
rack, first assemble the bracket and chargers and then install the assembly on the rack.
1. Place one power supply horizontally in bottom tray.
2. Place one power supply vertically in bottom tray.
3. Connect AC line cords to power supplies.
4. Connect DC line cords to power supplies.
5. Secure power supplies and cables to bottom tray with tie wraps.
6. Route cables through cable slots.

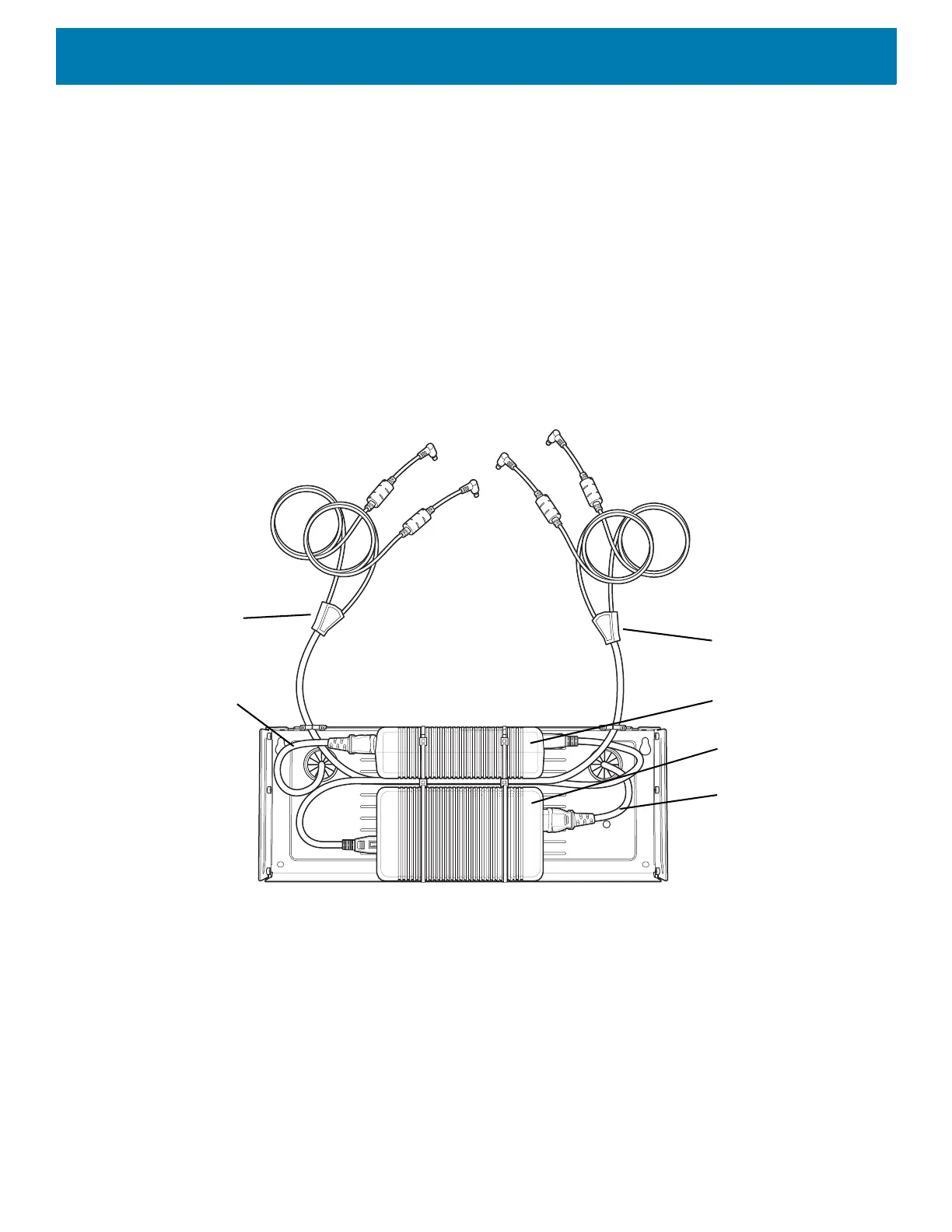

Figure 51 Power Supplies in Bottom Tray
7. Slide top tray onto bottom tray until top tray touches vertical power supply.
DC Y Cable 2
AC line Cord 2
Power Supply 1
Power Supply 2
AC line Cord 1
DC Y Cable 1
