Accessories
57

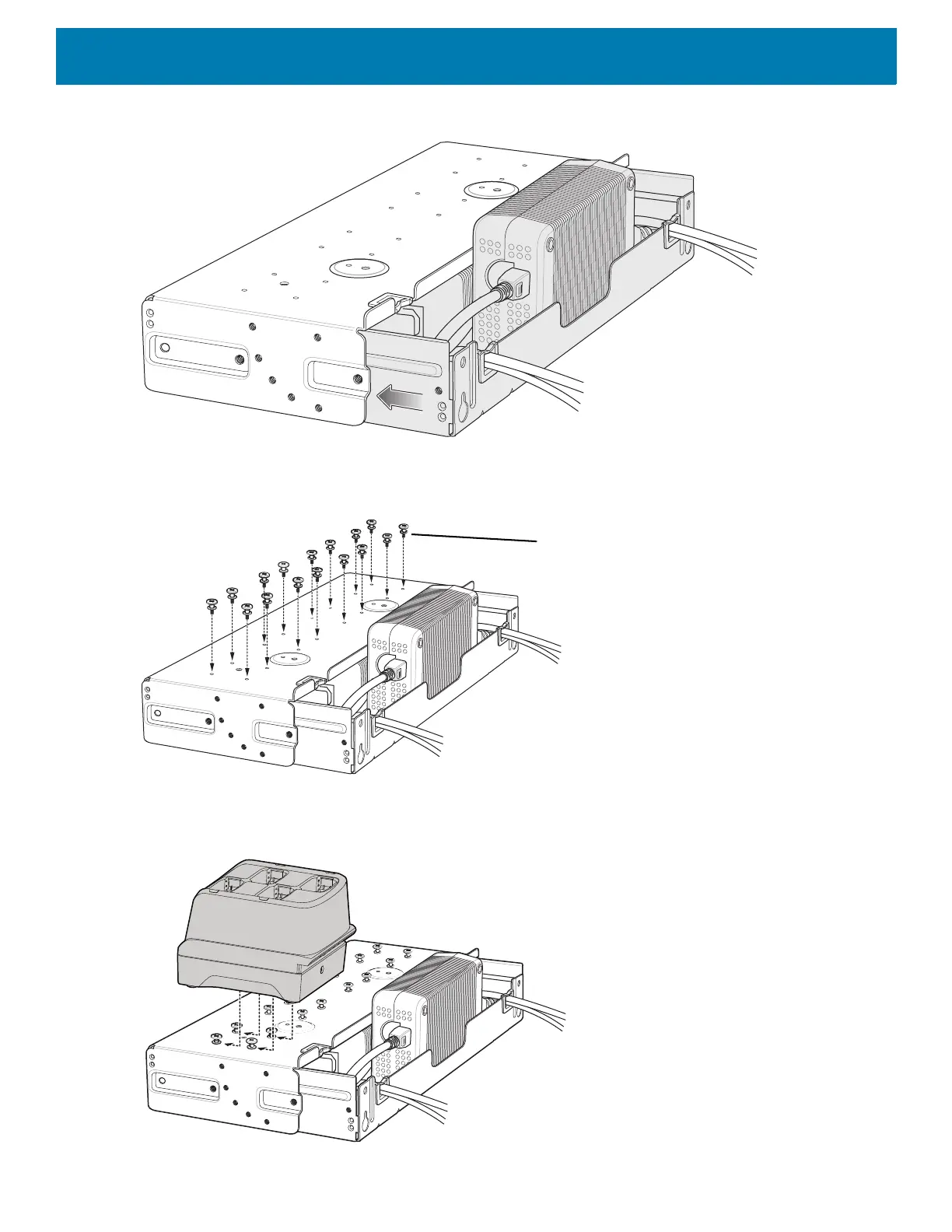

Figure 52 Slide top Tray onto Bottom Tray
8. Install 16 M2.5 studs onto top tray as shown below.
Figure 53 Install Studs
9. Align and install 4-Slot Battery Charger onto four studs.
Figure 54 Align Chargers on Studs
Studs (16)
