Zebra MC93 Series - Page 58

Accessories
58

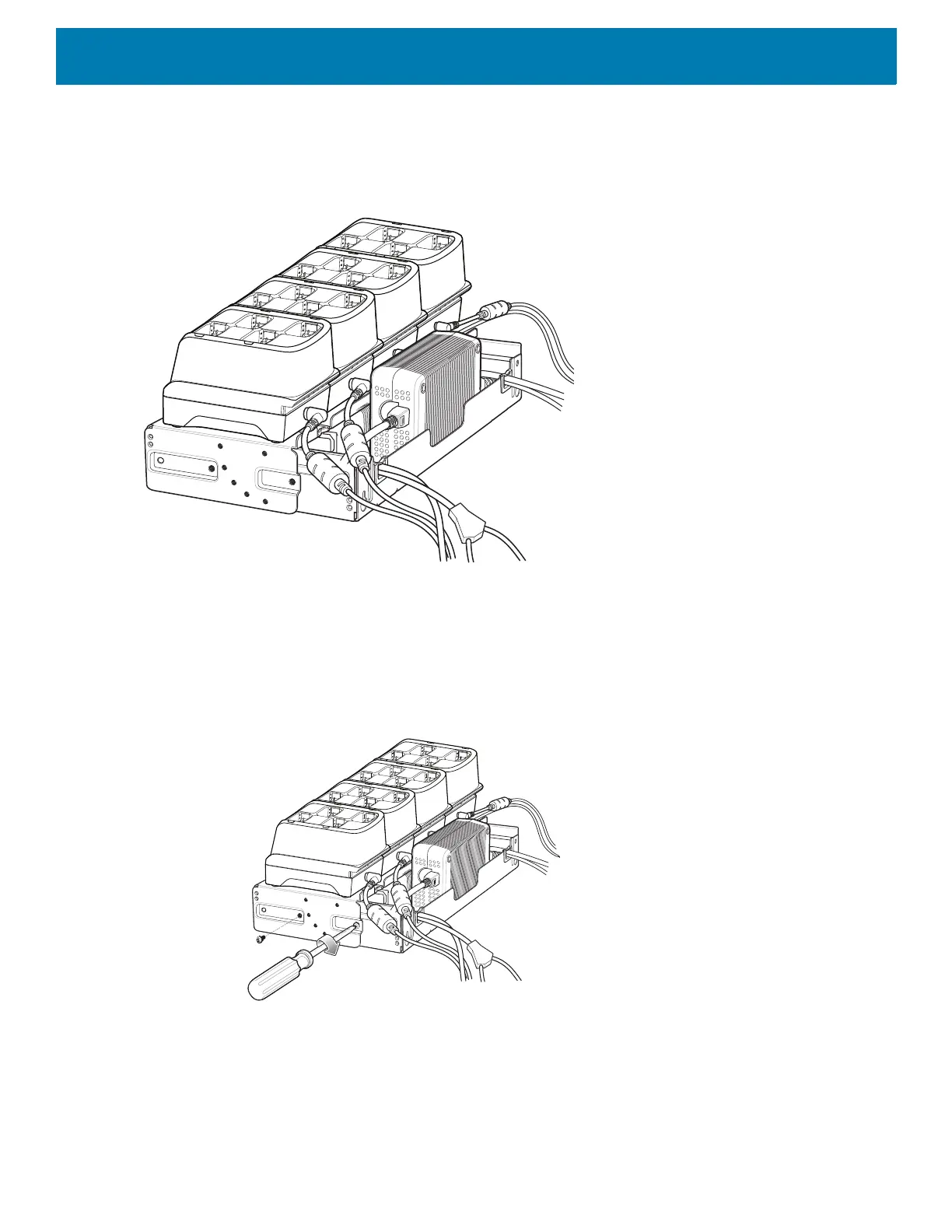

10.Connect DC Y cables to four 4-Slot Battery Chargers.
Figure 55 Connect Cables
11.Secure top tray to bottom tray with four M5 screws (two on each side).
Figure 56 Secure Top Tray to Bottom Tray
See Rack Mount Installation for installing the bracket onto a rack.
