Accessories
59
Rack Mount Installation
NOTE: Use screws provided with rack system. Refer to rack user documentation for instructions.

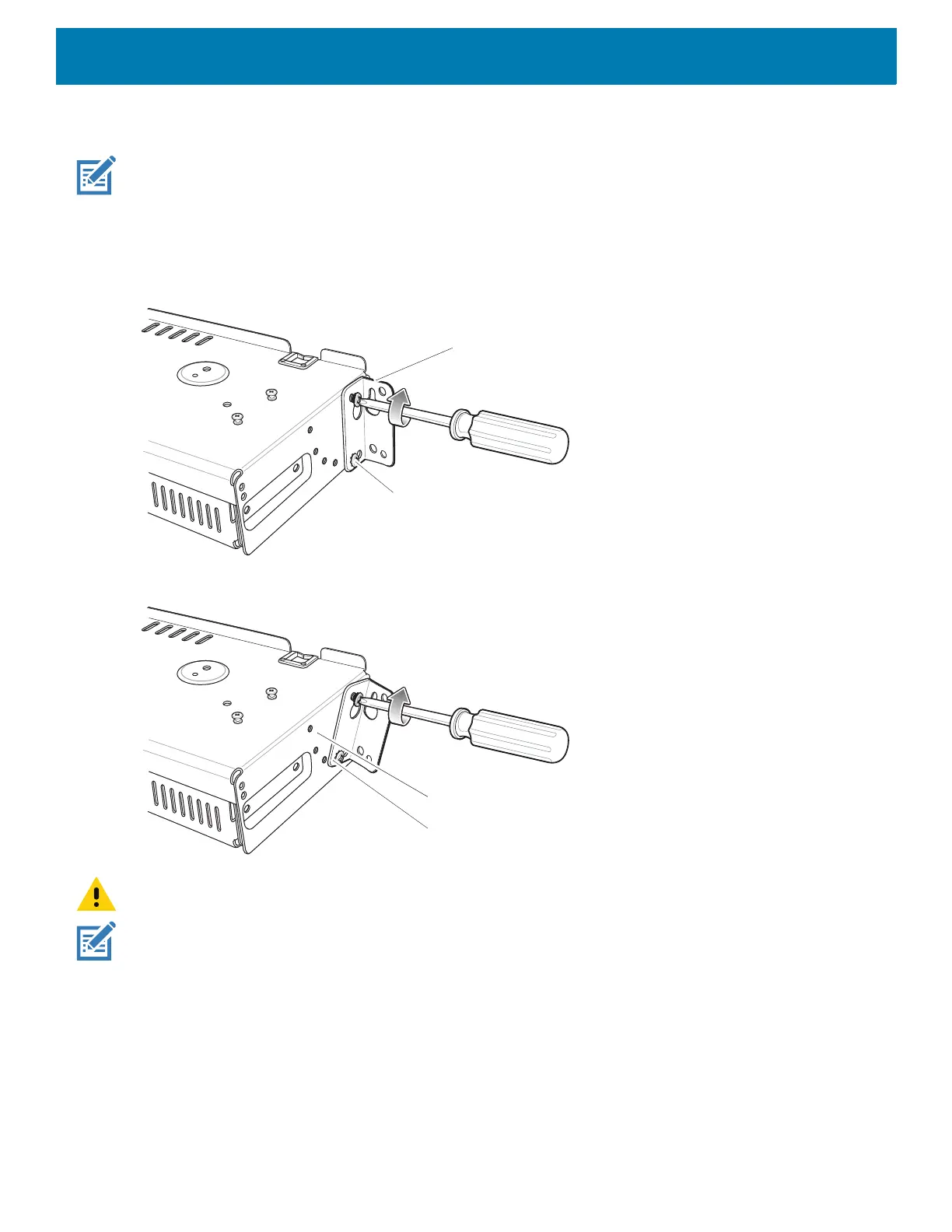

1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side). For 5-Slot
cradles, position the flange for horizontal installation. For 4-Slot Battery Chargers, position the flange for
25° installation.
Figure 57 Flange Horizontal Position (5-Slot Cradles)
Figure 58 Flange 25° Position (4-Slot Battery Chargers)
CAUTION: Install mounting bracket with 5-Slot cradle at a maximum height of four feet from ground.
Install mounting bracket with 4-Slot Battery Charger at a maximum height of three feet from ground.
NOTE: Distance between two horizontal mounted brackets should be at least 14” apart (from top of one flange to the top of
the next flange).
Distance between a horizontal mounted bracket and a 25° mounted bracket should be at least 16.25” apart (from top of one
flange to the top of the next flange).
There should be enough clearance (2.75”) between the top of the device and the bottom of the mounting bracket above.
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way
from the rail.
