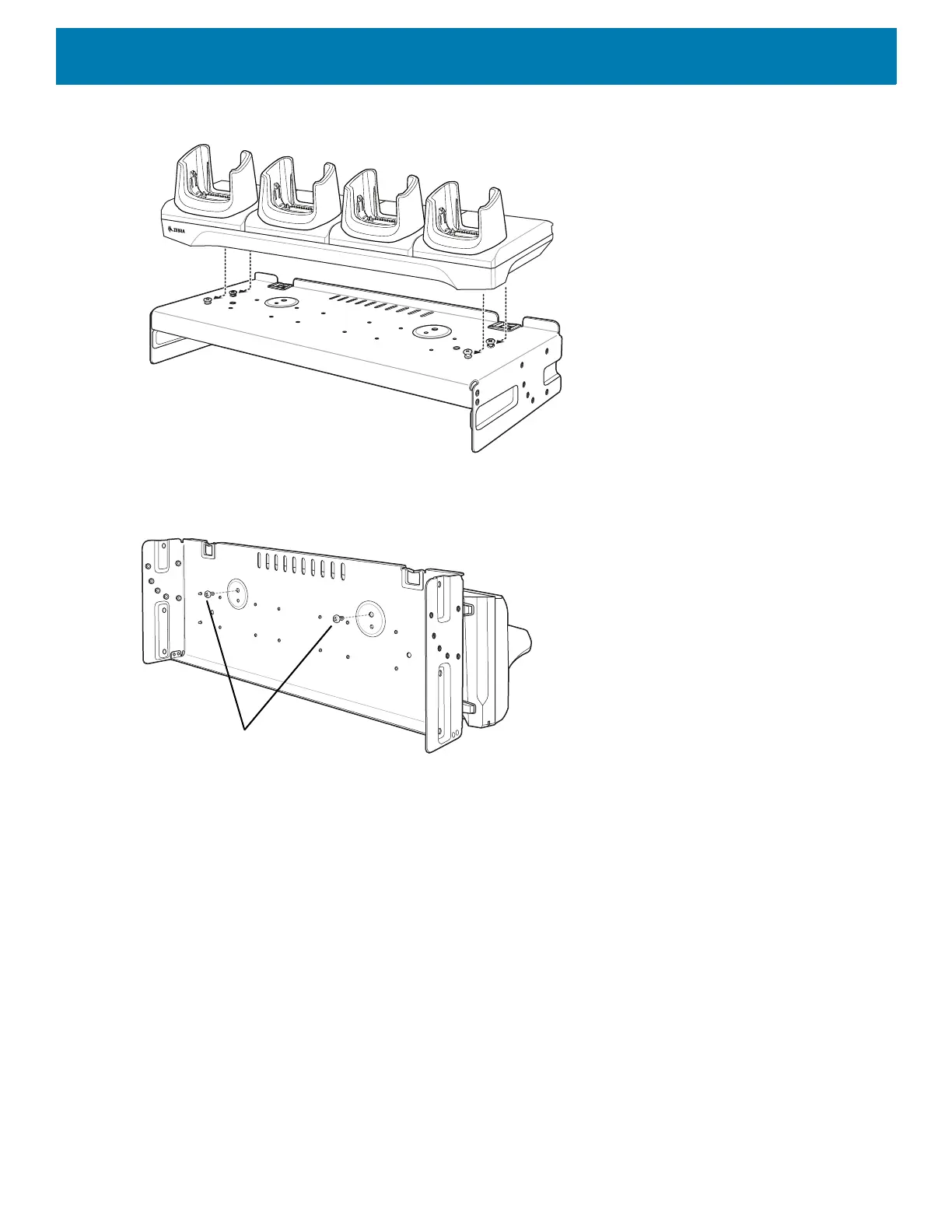

Figure 46 Align Cradle on Studs
8. Secure cradle to top tray with two M2.5 safety screws.
Figure 47 Secure Cradle
9. Slide top tray onto bottom tray.
MC
9
3
MC
9
3
MC
9
3
MC
9
3
Safety Screws(2)
