5 - 6 TC56 User Guide for Android Version 6.0.1

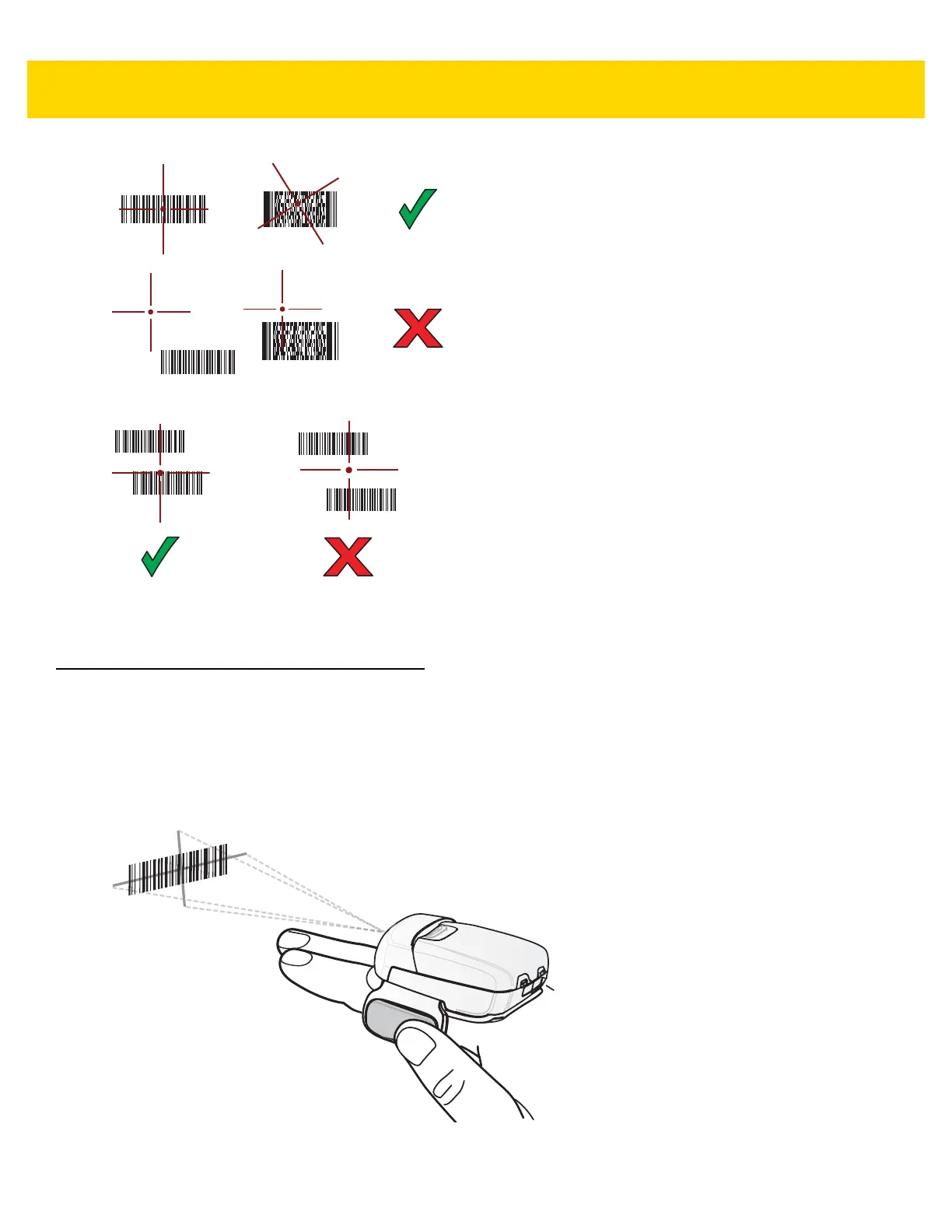

Figure 5-8 Aiming Pattern
Figure 5-9 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
Bar Code Capture with RS507 Hands-Free Imager
Pair the RS507 with the TC56. See Pairing the RS507/RS6000 Hands-Free Imager on page 5-8 for more
information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507 at a bar code.
Figure 5-10 Bar Code Scanning with RS507

Zebra TC56 Specifications

General

Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	0.016 GB
Internal memory	0.002 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	128 GB
Processor family	Qualcomm
Processor frequency	1.8 GHz
Operating system version	6.0
Operating system installed	Android
RFID reader	-
Certification	WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS), Miracast WFA (Mobile AP / Personal Hotspot)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Battery capacity	4300 mAh
Data network	CDMA, EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
WCDMA bands supported	850, 1900 MHz
Second camera	No
Rear camera resolution (numeric)	13 MP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	155 mm
Width	75.5 mm
Height	18.6 mm
Weight	249 g
