7 - 8 TC56 User Guide for Android Version 6.0.1
4-Slot Charge Only Cradle with Battery Charger
The 4-Slot Charge Only Cradle with Battery Charger:
• Provides 5 VDC power for operating the TC56.
• Simultaneously charges up to four TC56s and up to four spare batteries using the Battery Charger Adapter.

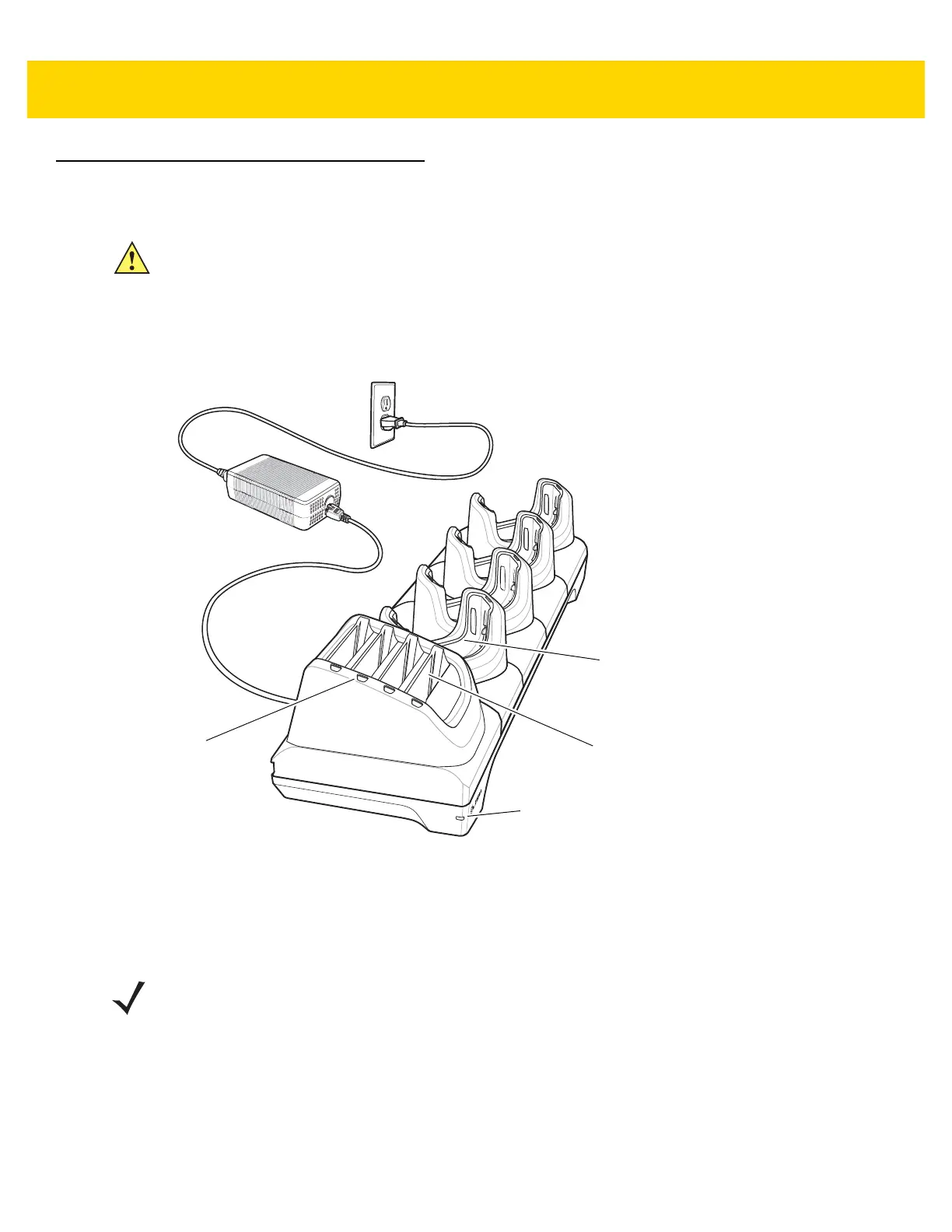

Figure 7-4 4-Slot Charge Only Cradle with Battery Charger
Charging the TC56
To charge a device:
1. Insert the TC56 into a slot to begin charging.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
8-2.
Spare Battery
Charging LED
Power LED
Spare Battery Slot
TC56 Charing Slot
NOTE If the device has a Rugged Boot, remove the cup insert before inserting the device. See TC56 Touch
Computer Integrator Guide for Android Version 6.0.1 for details.
