Accessories 7 - 31
Trigger Handle
The Trigger Handle adds a gun-style handle with a scanning trigger to the device. It increases comfort when using
the device in scan-intensive applications for extended periods of time.

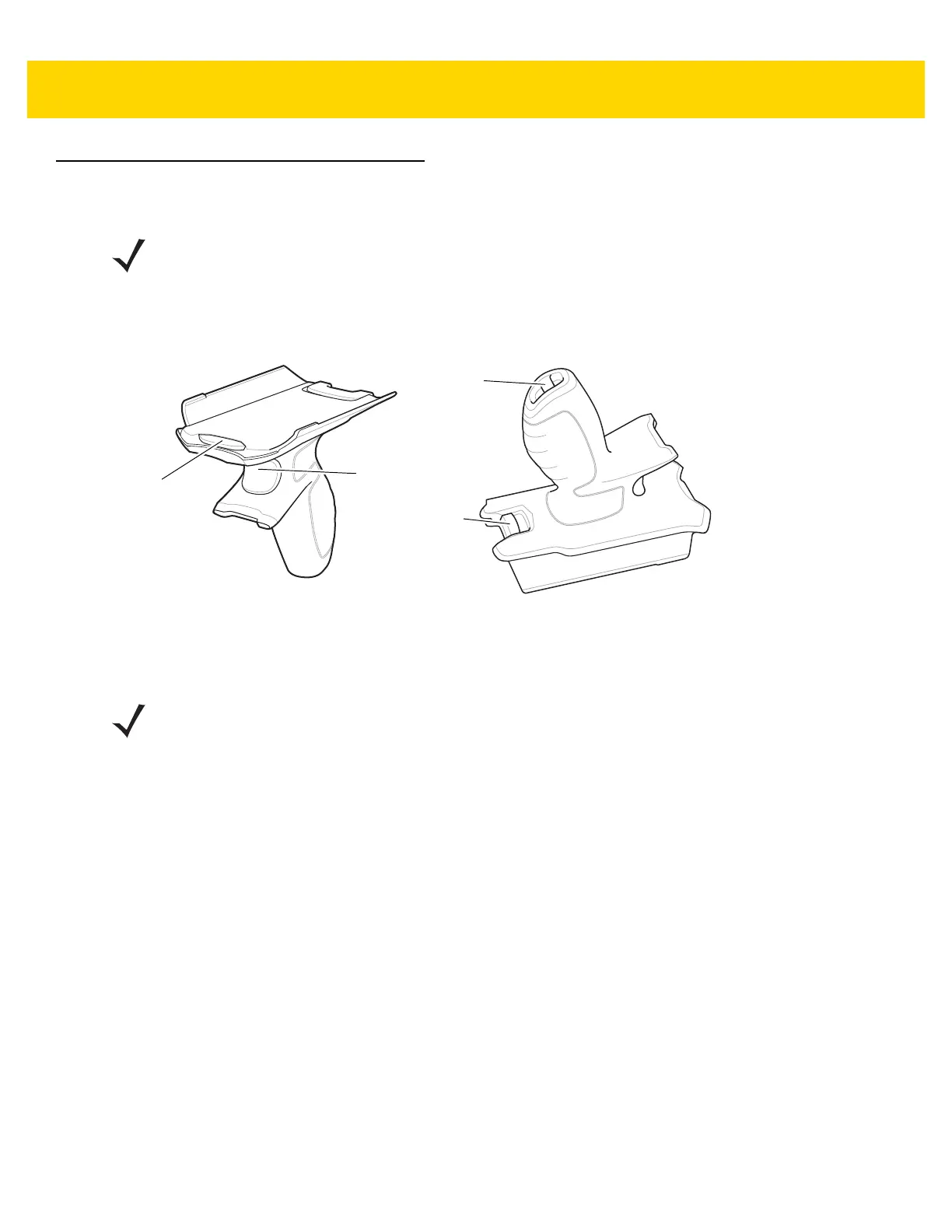

Figure 7-36 Trigger Handle
Installing the Rugged Boot
To install the Rugged Boot:
1. Insert the bottom of the device into the bottom of the boot.
NOTE The Rugged Boot is required to install the Trigger Handle onto the device. Trigger Handle (p/n
TRG-TC56-SNP1-01) does not contain the Rugged Boot and must be purchased separately. Trigger
Handle Kit (p/n TRG-TC56-TRG1-01) contains the Rugged Boot.
Trigger
Release
Latch
Lanyard
Mount
Flange
NOTE If a Hand Strap is attached to the Rugged Boot, remove prior to installing onto device.
