Accessories 7 - 25
3.5 mm Audio Adapter
The 3.5 mm Audio Adapter plugs into the TC56 and connects to a wired headset with a 3.5 mm plug.
To attach a 3.5 mm headset:
1. Open the headset jack cover.
2. Insert the 3.5 mm Audio Adapter plug into the headset jack.

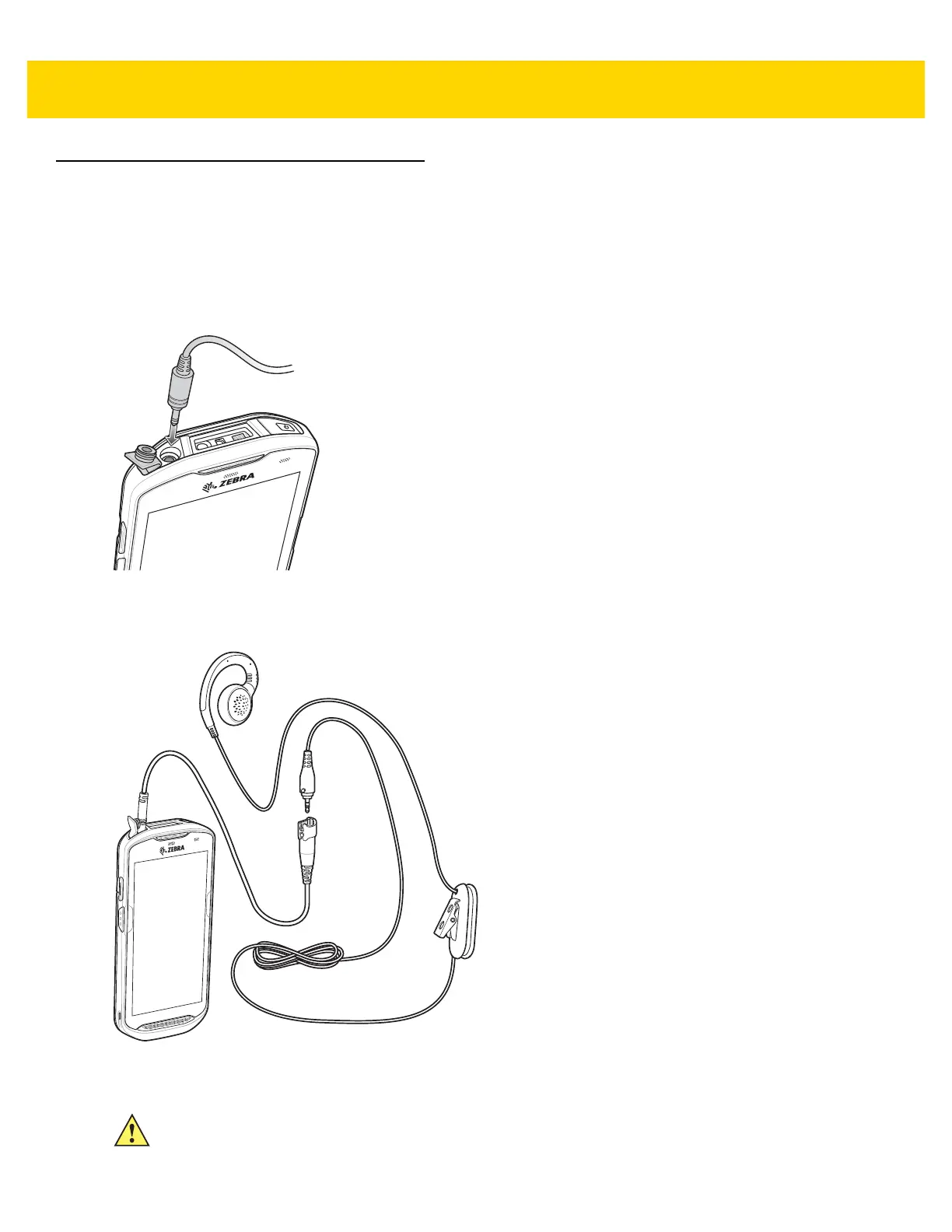

Figure 7-26 Audio Adapter Installation
3. Connect the 3.5 mm connector plug of the headset into the 3.5 mm Audio Adapter.
Figure 7-27 Connect Headset to 3.5 mm Adapter Cable
CAUTION After removing headset, headset jack cover must be replaced and securely seated to ensure proper
device sealing.
