7 - 6 TC56 User Guide for Android Version 6.0.1

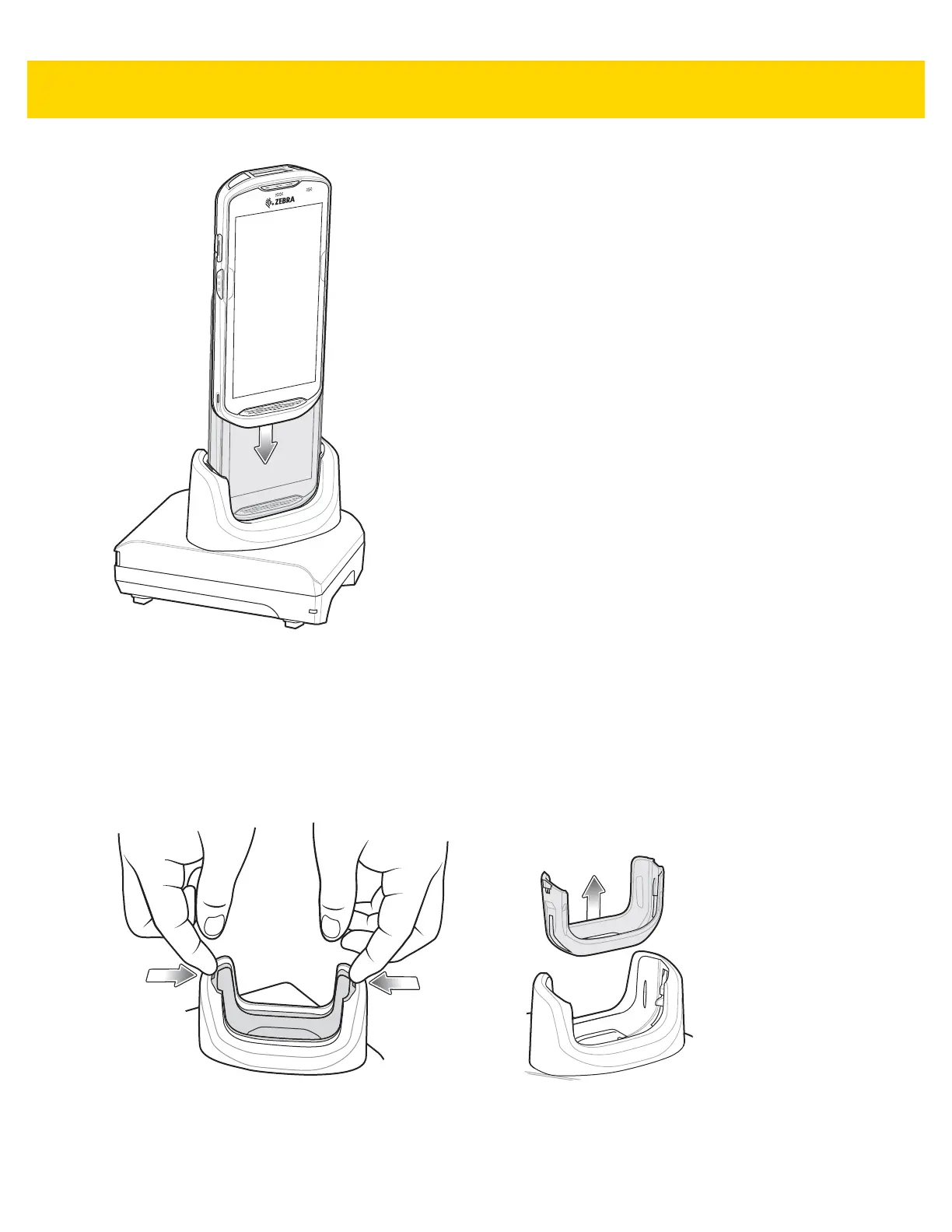

Figure 7-2 Battery Charging
2. Ensure the device is seated properly.
Inserting a TC56 with Rugged Boot into Cradle
Each cradle cup has an insert that must be removed prior to inserting the TC56 with Rugged Boot. Remove the
insert and then insert the TC56 into the cup.
Figure 7-3 Remove Insert from Cup
