7 - 12 TC56 User Guide for Android Version 6.0.1
5-Slot Charge Only Cradle
The 5-Slot Charge Only Cradle:
• Provides 5 VDC power for operating the TC56.
• Simultaneously charges up to five TC56s.

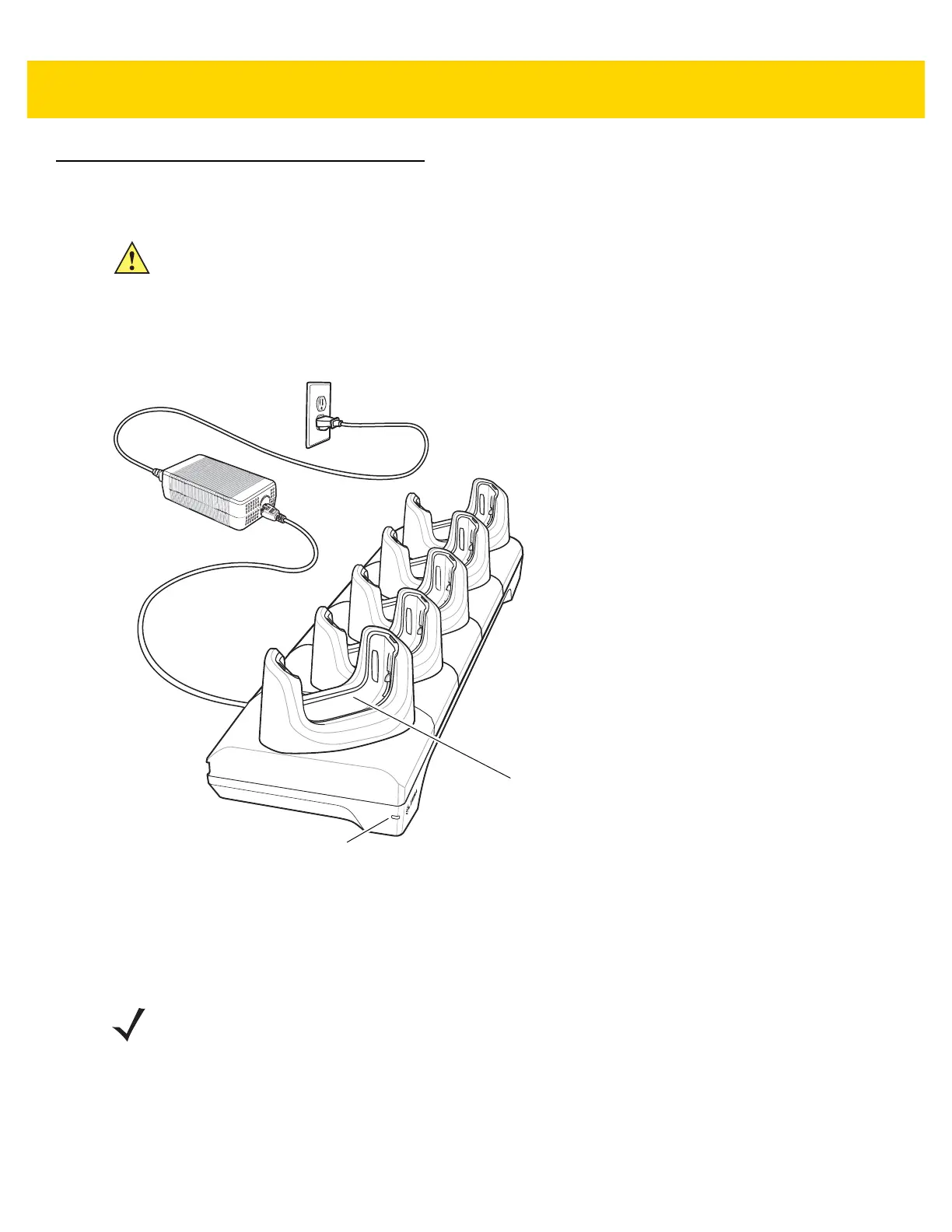

Figure 7-8 5-Slot Charge Only Cradle
Charging the TC56
To charge a device:
1. Insert the TC56 into a slot to begin charging.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
8-2.
Power LED
TC56 Charging Slot
NOTE If the device has a Rugged Boot, remove the cup insert before inserting the device. See TC56 Touch
Computer Integrator Guide for Android Version 6.0.1 for details.
