Zebra TC57 - Inserting the Device into the Trigger Handle

Accessories
208
2. Feed the lanyard through the loop.

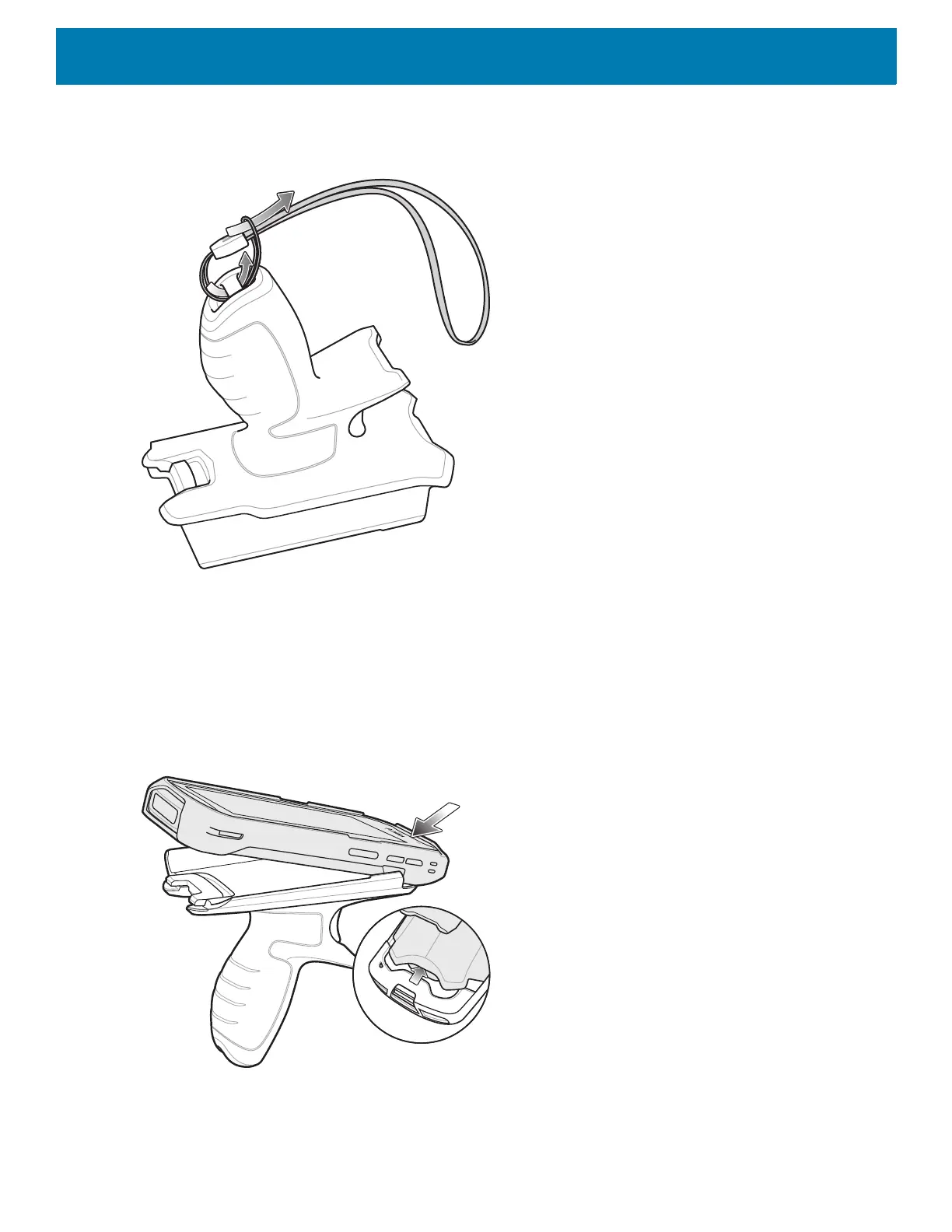

Figure 184 Install Attachment Plate to Handle
3. Pull the lanyard until the loop tightens.
Inserting the Device into the Trigger Handle
To install the device onto the Trigger handle:
1. Align and insert the flange of the Trigger Handle with the top of the Rugged Boot.
Figure 185 Connect Device to Trigger Handle
1
2
