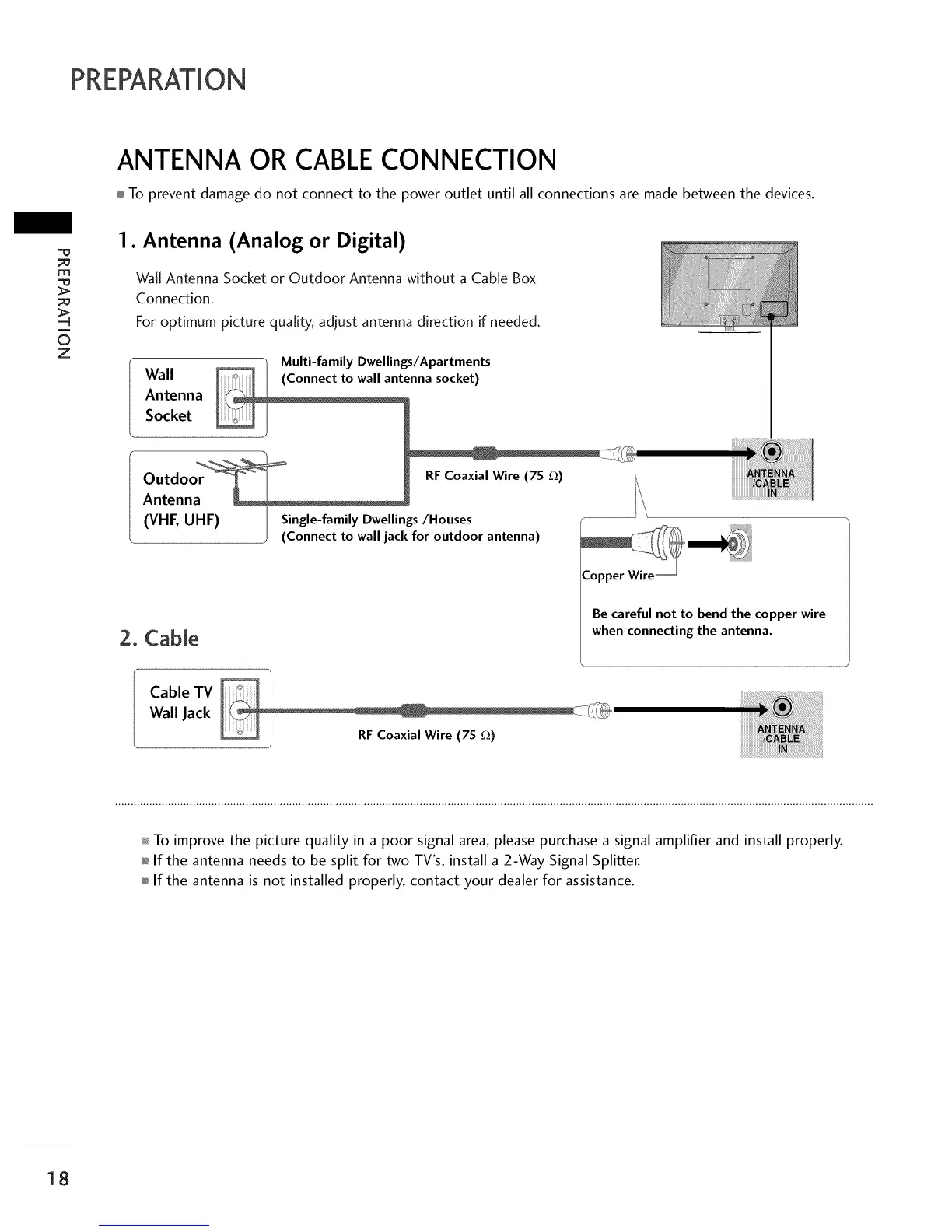

PREPARATION
ANTENNA OR CABLE CONNECTION
To prevent damage do not connect to the power outlet until all connections are made between the devices.
m
©
z
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connection.
For optimum picture quality, adjust antenna direction if needed.
_0_o_ "/ Multi-family Dwellings/Apartments
Wall enna socket)
Antenna
Socket
Outdo RFCoaxial Wire (7S _)
Antenn
(VHF, UHF) I Single-family Dwellings/Houses
(Connect to wall jack for outdoor antenna)
2. Cable
Be careful not to bend the copper wire
when connecting the antenna.
Cable TV
Wall Jack
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
01_If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
01_If the antenna is not installed properly, contact your dealer for assistance.
18
