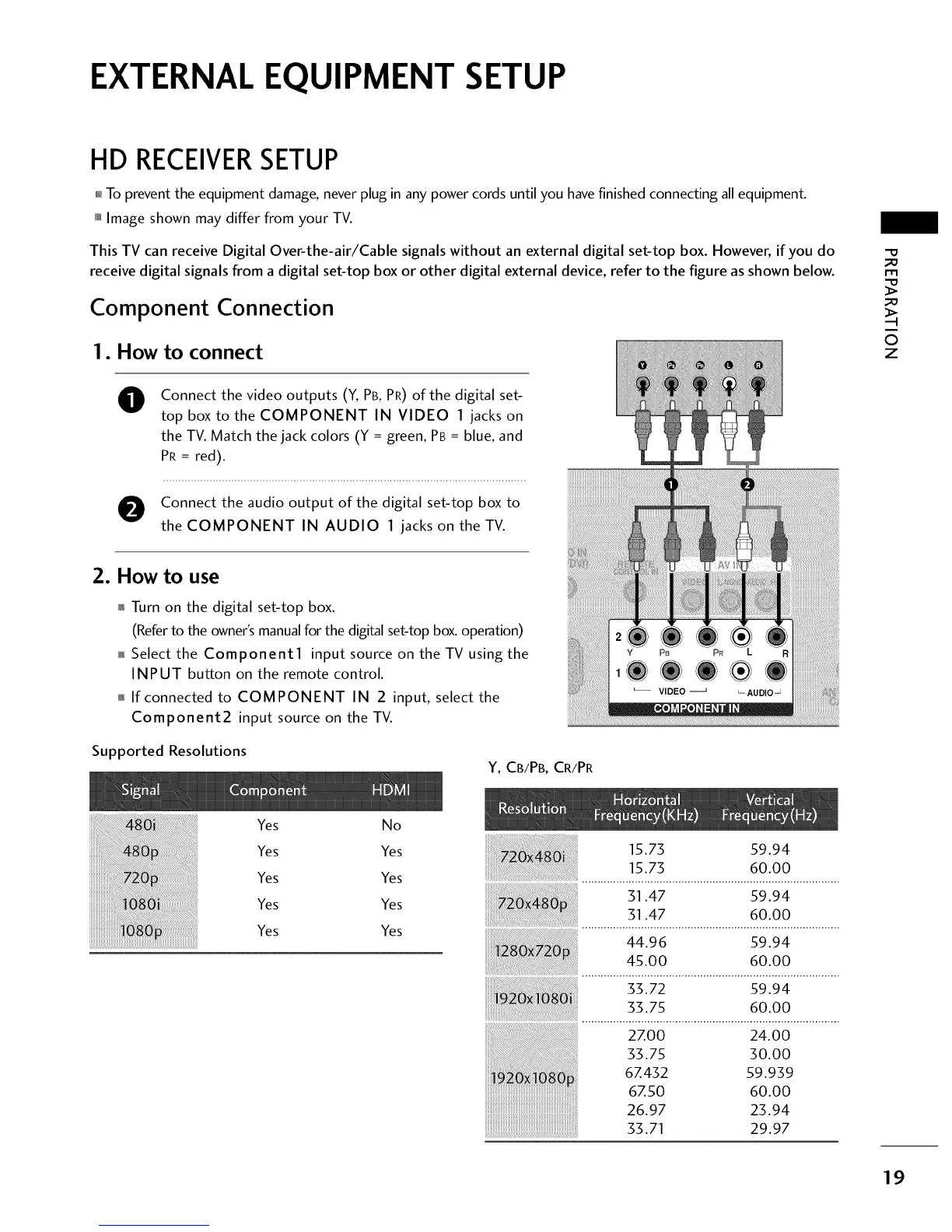

EXTERNAL EQUIPMENT SETUP
HD RECEIVERSETUP
01_To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
,,,iImage shown may differ from your TV.
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
Component Connection
I. How to connect
O
Connect the video outputs (Y, PB, PR) of the digital set-
top box to the COMPONENT IN VIDEO 1 jacks on
the TV. Match the jack colors (Y = green, PB = blue, and
PR = red).
O onnect the audio output of the digital set-top box to
the COMPONENT IN AUDIO 1 jacks on the TV.
_D
m
_D
©
z
2. How to use
01_Turn on the digital set-top box.
(Referto the owner'smanualfor the digital set-top box.operation)
0_Select the Component1 input source on the TV using the
INPUT button on the remote control.
01_If connected to COMPONENT IN 2 input, select the
Component2 input source on the TV.
Supported Resolutions
Y, CB/PB, CR/PR
Yes No
Yes Yes
Yes Yes
Yes Yes
Yes Yes
15.73 59.94
15.73 60.00
31.47 59.94
31.47 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
2Z00 24.00
33.75 30.00
6Z432 59.939
6Z50 60.00
26.97 23.94
33.71 29.97
19
