PREPARATION
"0
_o
m
_o
©
z

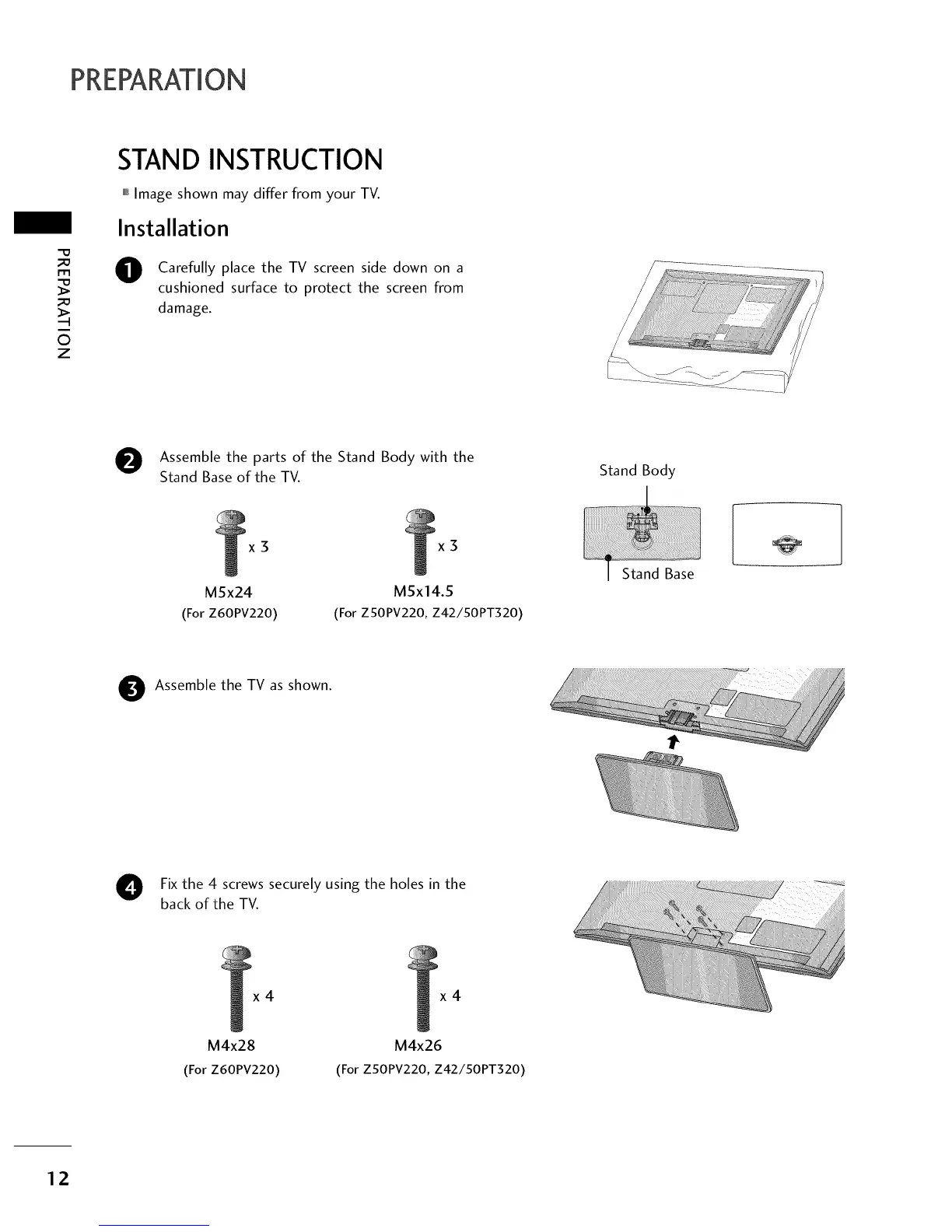

STAND INSTRUCTION
,,,IImage shown may differ from your TV.
Installation
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
e Assemble the parts of the Stand Body with the
Stand Base of the TV.
Stand Body
x3
x3
M5x24
(For Z60PV220)
M5x14.5
(For ZSOPV220, Z42/50PT320)
Assemble the TV as shown.
Fix the 4 screws securely using the holes in the
back of the TV.
x4 x4
M4x28
(For Z60PV220)
M4x26
(For Z50PV220, Z42/50PT320)
12
To Next Page
