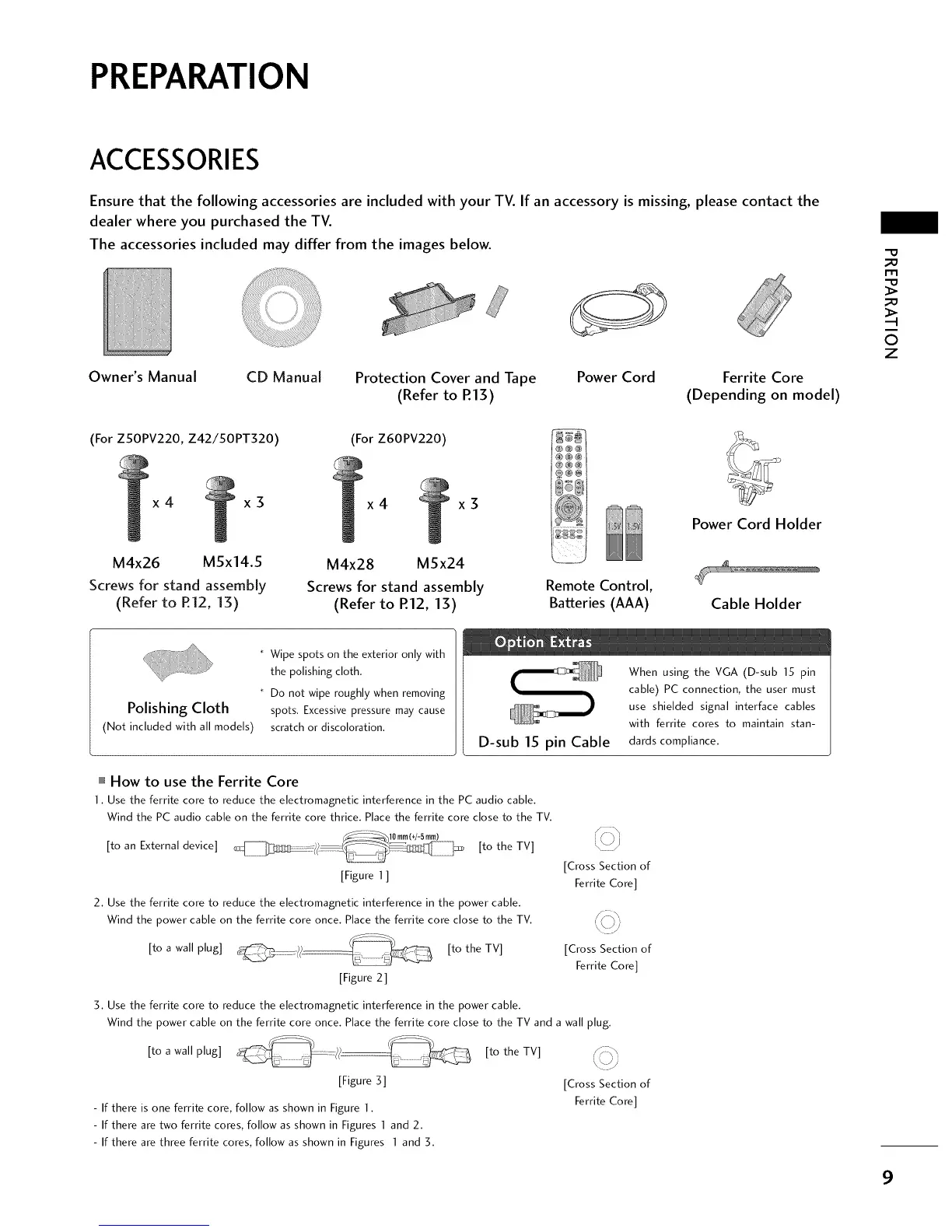

PREPARATION
ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the
dealer where you purchased the TV.
The accessories included may differ from the images below.
Owner's Manual
Zii!i
CD Manual Protection Cover and Tape Power Cord
(Refer to R13)
Ferrite Core
(Depending on model)
_D
r'_
_D
O
z
(For ZSOPV220, Z42/50PT320) (For Z60PV220)
x4 x3
x4 x3
Power Cord Holder
M4x26 M5x14.5
Screws for stand assembly
(Refer to R12, 13)
M4x28 MSx24
Screws for stand assembly
(Refer to R12, 13)
Remote Control,
Batteries (AAA)
Cable Holder
Polishing Cloth
(Not included with all models)
* Wipe spots on the exterior only with
the polishing cloth.
* Do not wipe roughly when removing
spots. Excessive pressure may cause
scratch or discoloration.
D-sub 15 pin Cable
When using the VGA (D-sub 15 pin
cable) PC connection, the user must
use shielded signal interface cables
with ferrite cores to maintain stan-
dards compliance,
""_How to use the Ferrite Core
1, Use the ferrite core to reduce the electromagnetic interference in the PC audio cable,
Wind the PC audio cable on the ferrite core thrice, Place the ferrite core close to the TV,
[to an External device] [to the TV]
[Figure 1 ]
2, Use the ferrite core to reduce the electromagnetic interference in the power cable,
Wind the power cable on the ferrite core once, Place the ferrite core close to the TV,
[to a wall plug] [to the TV]
[Figure 2]
3, Use the ferrite core to reduce the electromagnetic interference in the power cable,
Wind the power cable on the ferrite core once, Place the ferrite core close to the TV and a wall plug,
[to a wall plug] [to the TV]
[Cross Section of
Ferrite Core]
[Cross Section of
Ferrite Core]
[Figure 3] [Cross Section of
Ferrite Core]
- If there is one ferrite core, follow as shown in Figure 1,
- If there are two ferrite cores, follow as shown in Figures ] and 2,
- If there are three ferrite cores, follow as shown in Figures I and 3,
9
