NOTE!

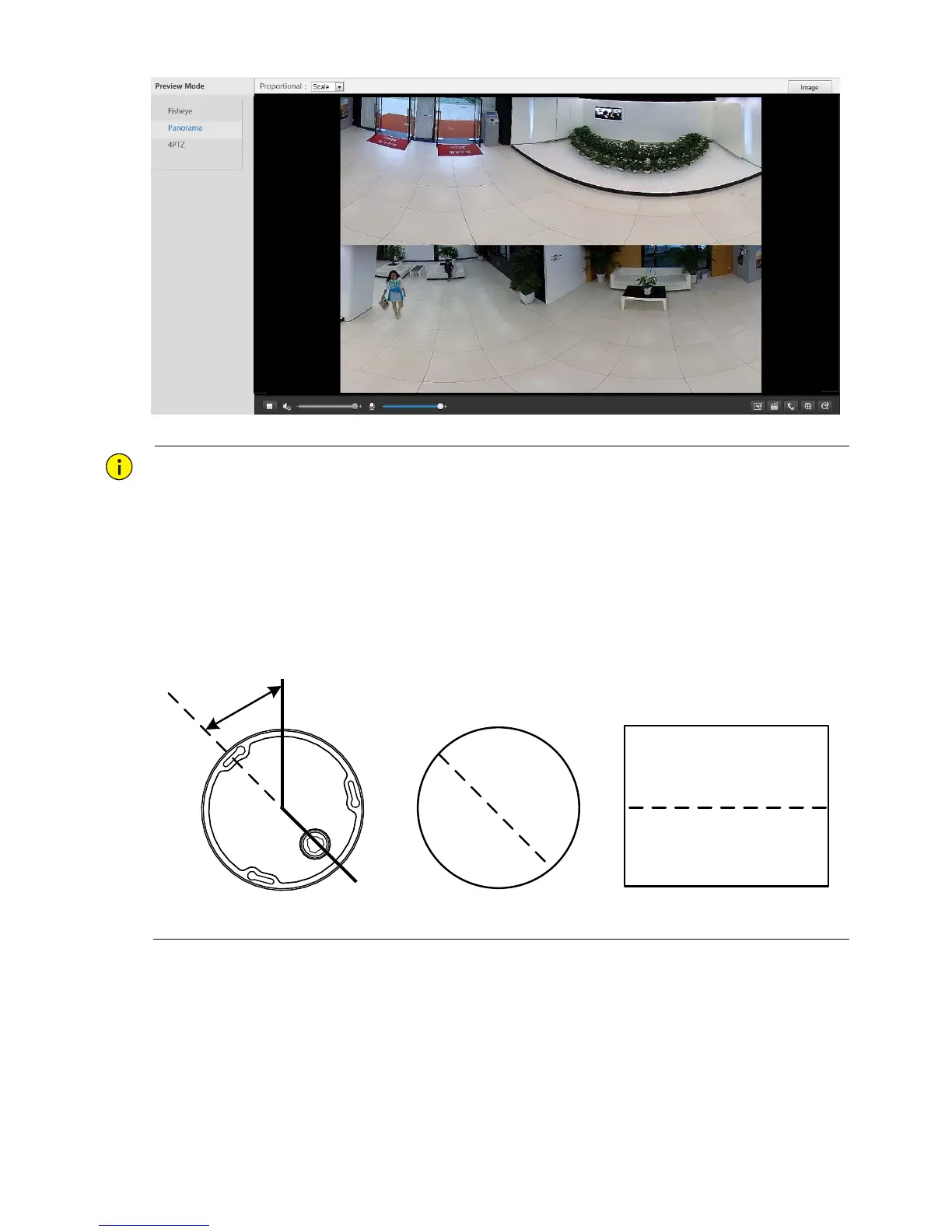

If the ceiling mount or table mount is adopted, the panorama image (two 180° images) is a dewarped
image of the fisheye preview image (360° image). Please mount the camera with an appropriate angle of
view according to the actual surveillance requirements.
For example, if the camera is installed on the ceiling, the surveillance target is displayed on the upper part
of the panorama image when the intersection angle between the device cable outlet (logo) and the
surveillance target in clockwise direction is 135°.
When 4PTZ is selected in the fisheye mode list, you can view four partial preview images that are
numbered from left to right and from top to bottom by default. As shown in the following figure, each
preview image can be operated as a virtual PTZ view for PTZ control and zooming.
