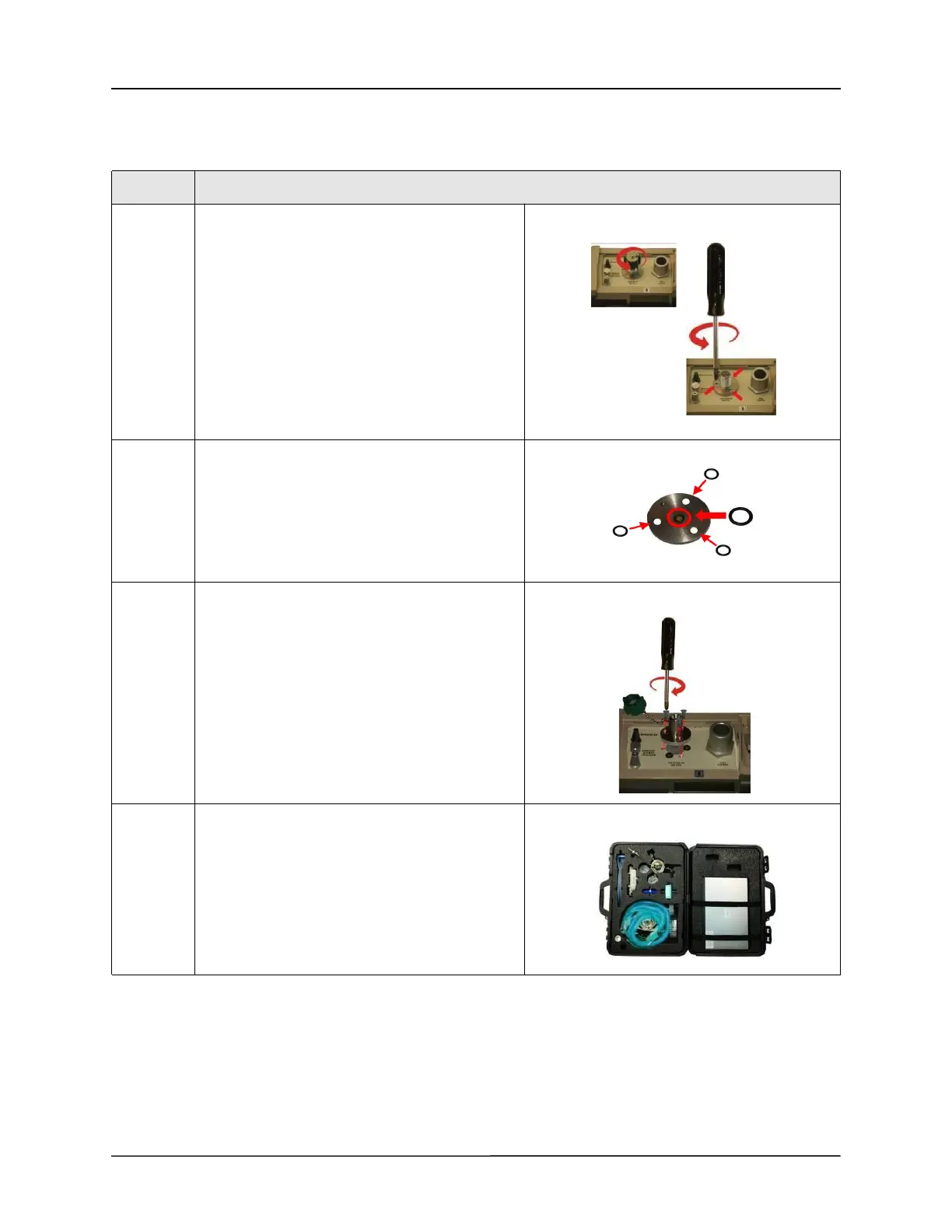

Service Kit Installation Procedures
4–74 www.zoll.com 906-0731-04-01 Rev. C
Instructions
Step Action
1 Remove the damaged oxygen inlet (OXYGEN
IN) fitting by unscrewing the dust cap then
unscrewing the
three 8-32 x 7/16 screws.
2 Install the O-Rings (provided in the kit) into
grooves on underside of inlet fitting.
3 Place oxygen inlet fitting over the ventilators
connector panel then insert and tighten the 3
supplied 8-32 x 7/16 screws.
4 Re-certify the ventilator using the RCS.
