Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–39

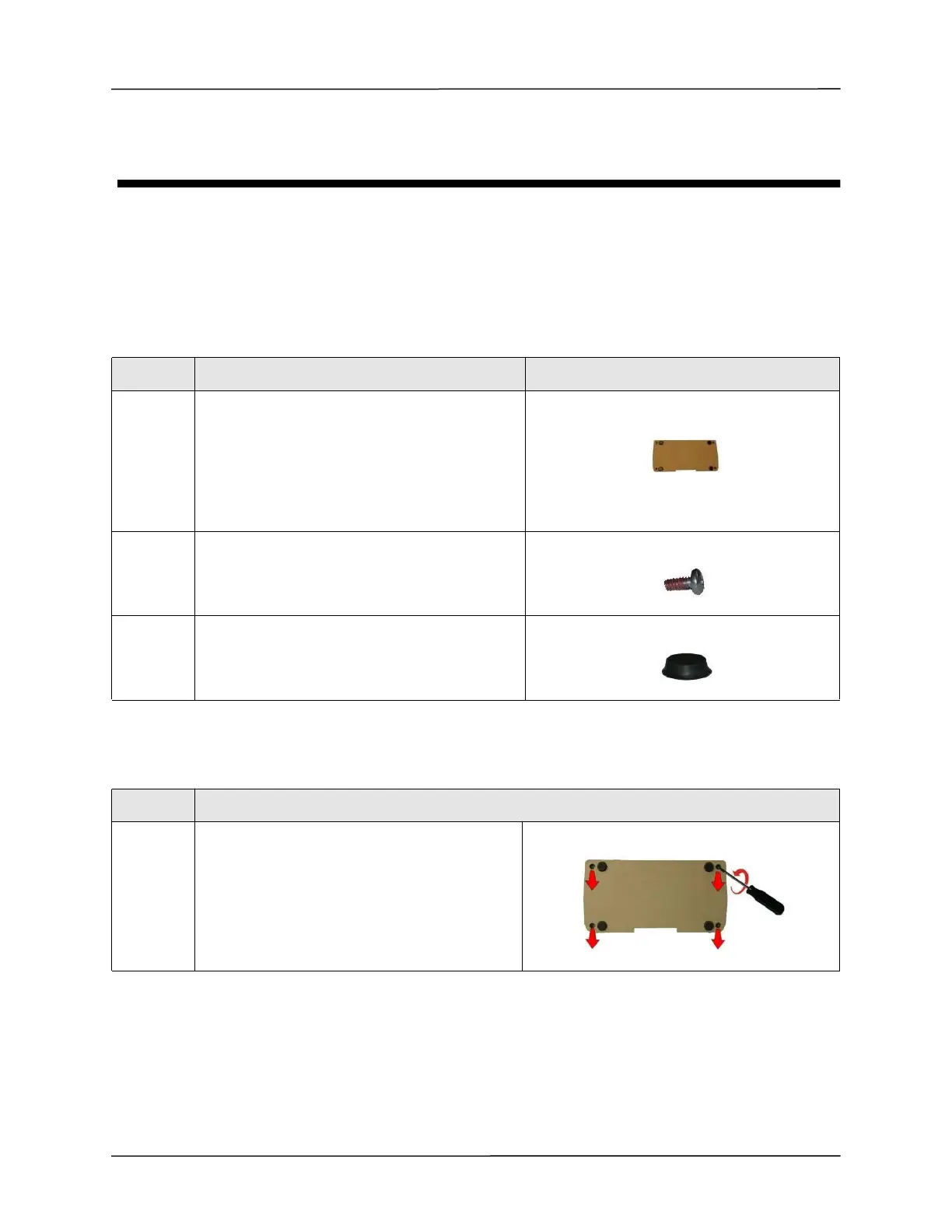

Battery Case Bottom Cover Service Kit Installation
Instructions
Required Tools
• Torque driver with #1 and #2 Phillips bits
Kit Contents
Instructions
Quantity Description Depiction
1 Battery case bottom cover
4 Screw, Phillips, Pan Head, SS, 6-32 x 5/16
4 Bumper, Rubber, Foot, P/S, Round,
1/2" Dia. x 1/8", Blk
Step Action
1 Remove the damaged cover by unscrewing the
four 6-32 x 5/16 screws.
To Next Page
