Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–25

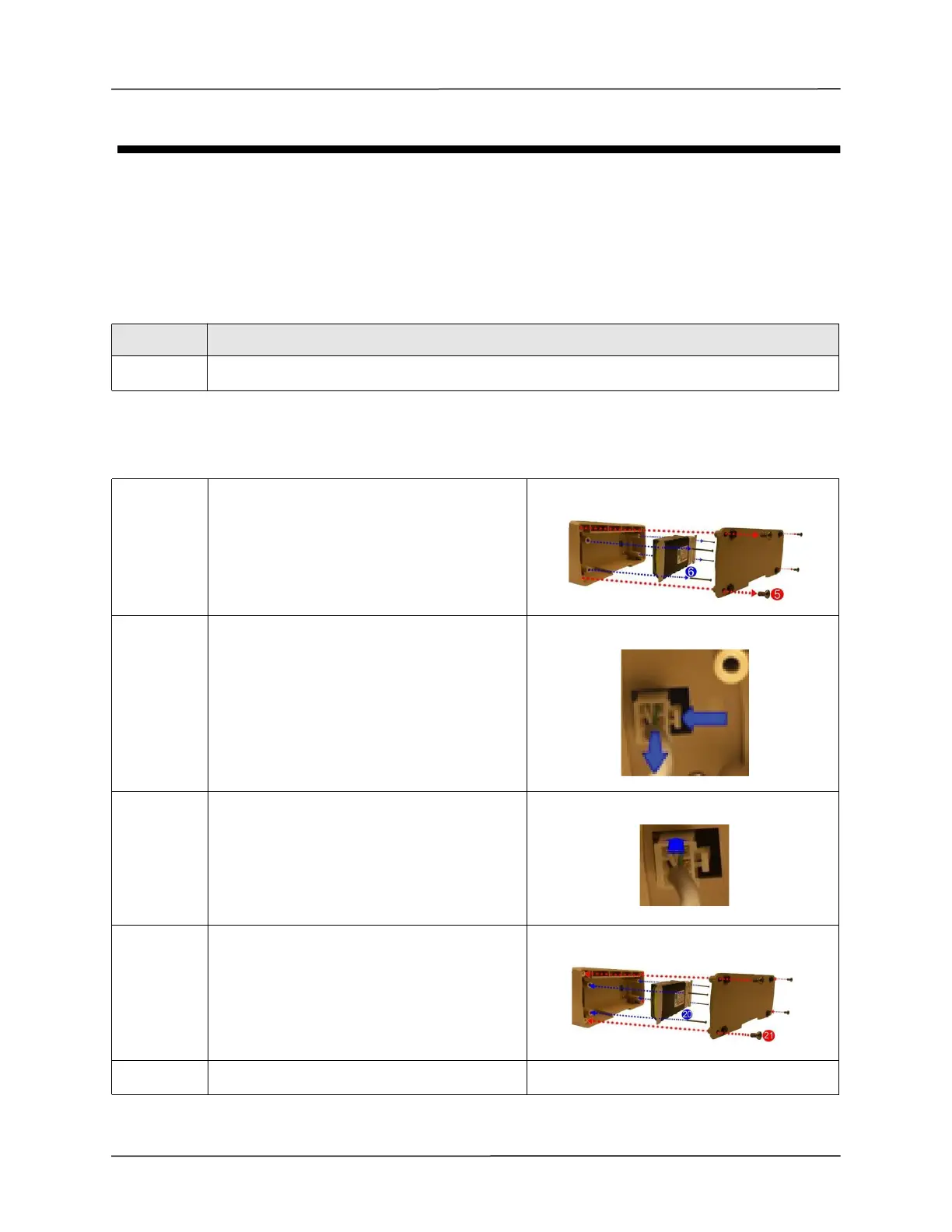

Battery Replacement Service Kit Installation Instructions
Required Tools
• Torque driver with #1 and #2 Phillips bits
Kit Contents
Instructions
Quantity Description
1 ASSY, BATTERY PACK, 6.6 AH, 14.8V, LITHIUM-ION, 12- CELL CONDITIONED
1 Remove the battery compartment cover by
unscrewing the four 6-32 x 5/16 screws.
Save these screws.
2 Remove the battery by unscrewing the four 6-32
x 2 1/4 screws and disconnecting the plug from
its locking latch.
Save these screws.
3 Connect the new battery by connecting its cable
to the connector (pull lightly on cable to ensure
it is locked in place), then tighten the four 6-32 x
2 1/4 screws.
4 Re-assemble the battery compartment cover by
tightening the four 6-32 x 5/16 screws.
5 Re-certify the ventilator using the RCS tool
