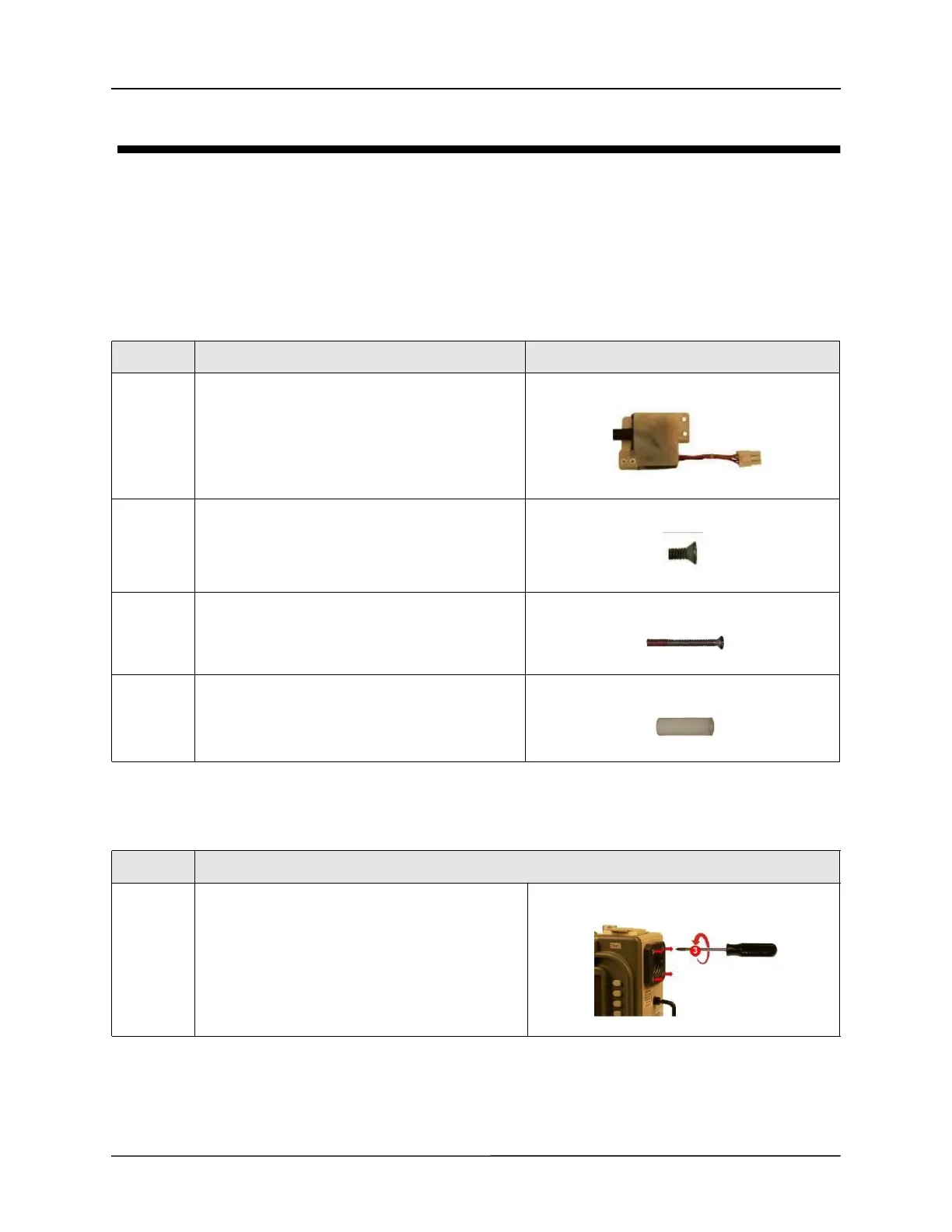

Service Kit Installation Procedures
4–68 www.zoll.com 906-0731-04-01 Rev. C
Power Input Service Kit Installation Instructions
Required Tools
• Torque driver with #1 and #2 Phillips bits
• Nut driver set
Kit Contents
Instructions
Quantity Description Depiction
1 Power Input Assembly
2 Screw, Phillips, Flat Head, Zinc Plated,
4-40 x 1/4
2 Screw, Phillips, Flat Head, 4-40 x 1 1/4
2 Spacer, Nylon, #4, x 812 Long
Step Action
1 Loosen by 1 full turn and do not remove the four 8-
32 x 3 screws on the outer air intake. (Additional
loosening may cause the filter disk to slip out of
place)
