Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–19

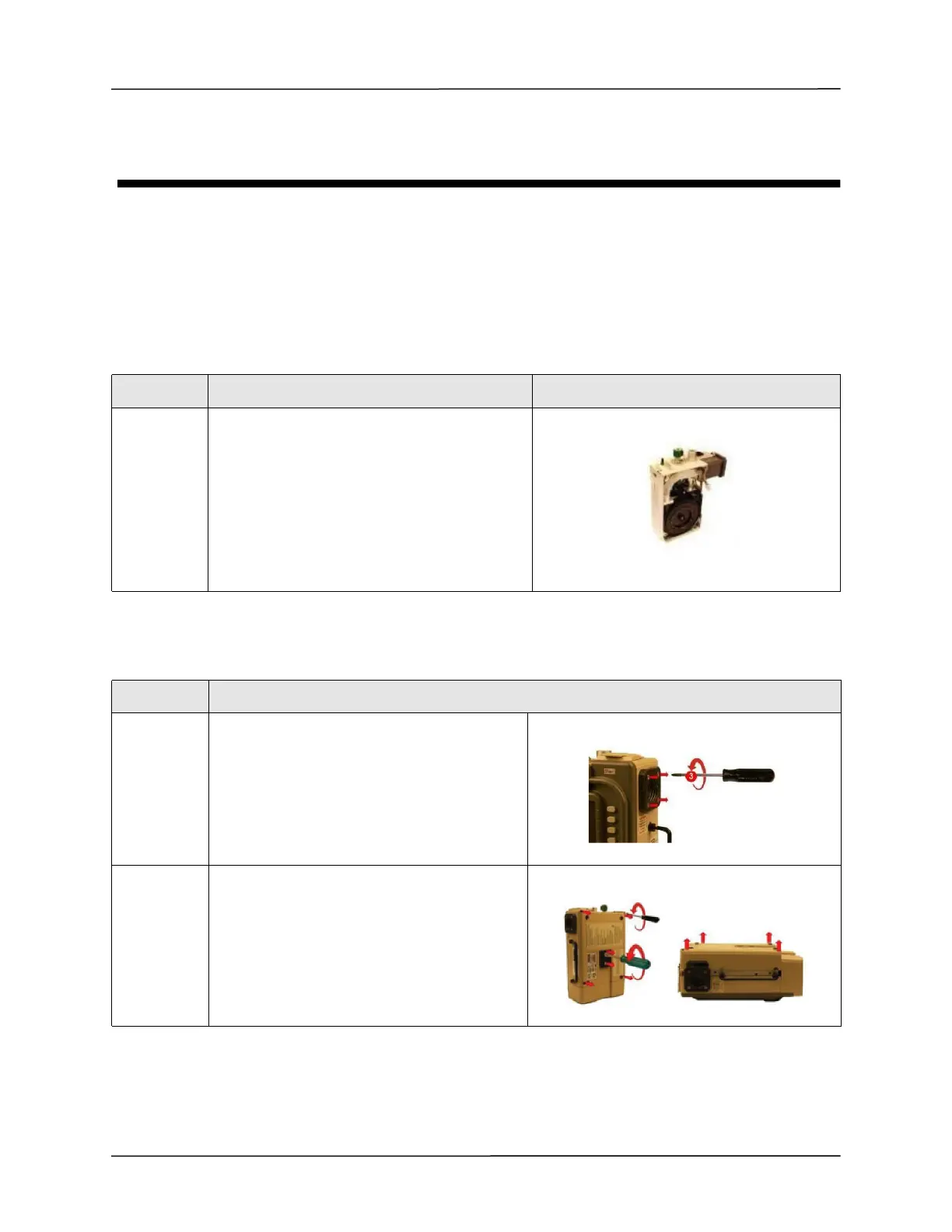

Smart Pneumatic Module/Vent Assembly Service Kit
Installation Instructions
Required Tools and Materials
• Torque driver with #1 and #2 Phillips bits
• Nut driver set
Kit Contents
Instructions
Quantity Description Depiction
1 Smart Pneumatic Module/Vent Assembly
Step Action
1 Loosen by 1 full turn and do not remove the four
8-32 x 3 screws on the outer air intake.
(Additional loosening may cause the filter disk to
slip out of place)
2 Loosen and remove the two 10-32 Keps nuts and
the four 6-32 x 2 screws.
Save these screws and Keps nuts.
Remove the back case by lifting from the
ventilator.
To Next Page
