Service Kit Installation Procedures
4–34 www.zoll.com 906-0731-04-01 Rev. C

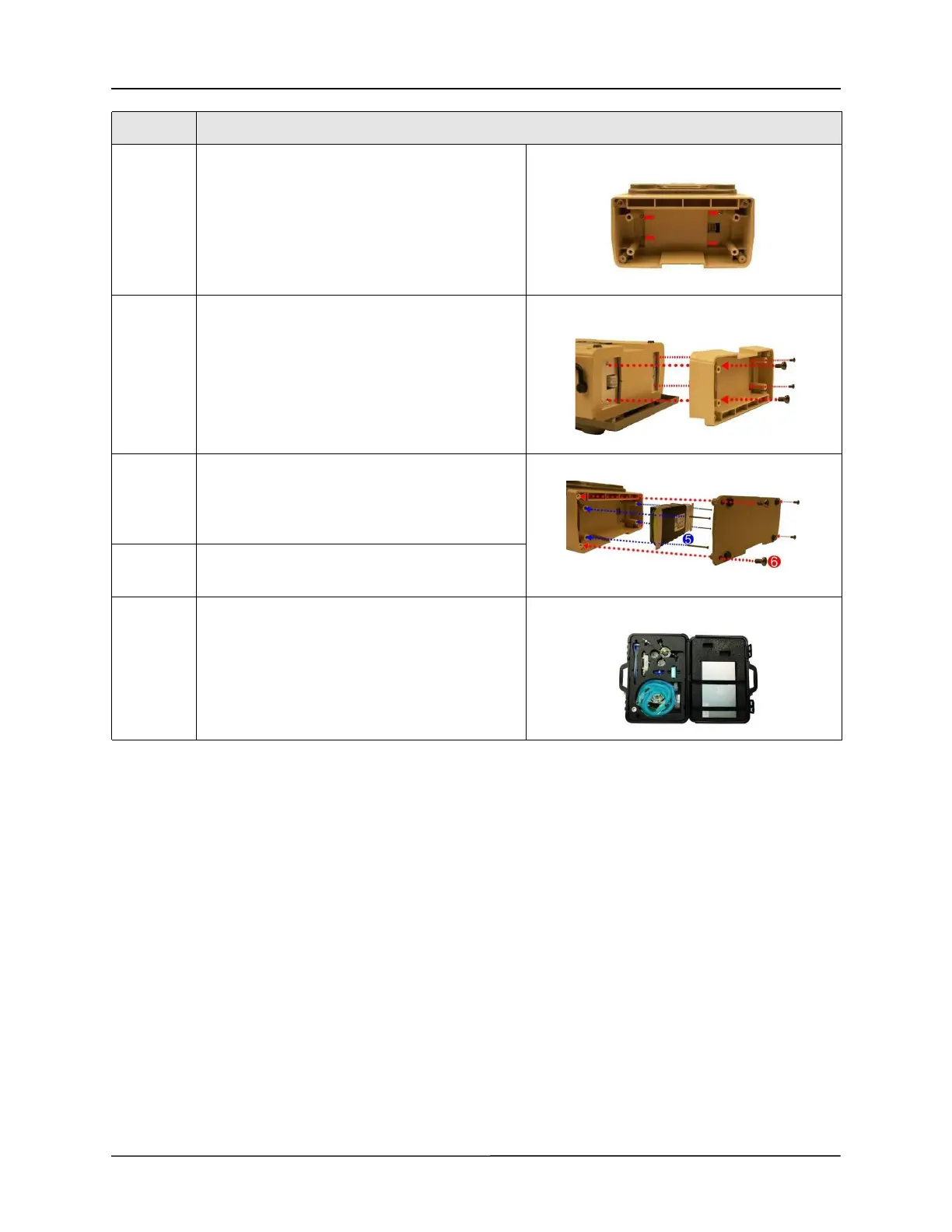

3 Unscrew the four 6-32 x 5/16 Phillips screws to
remove the damaged battery compartment case.
Save these screws.
4 Rotate the battery compartment to mate with
upper and lower case cutouts and press firmly into
place. Secure with
four 6-32 x 5/16 screws provided.
5 Re-assemble the battery by connecting its cable to
the connector (pull lightly on cable to ensure it is
locked in place) then tightening the four 6-32 x 2
1/4 screws.
6 Re-assemble the battery compartment cover by
tightening the four 6-32 x 5/16 screws.
7 Re-certify the ventilator using the RCS.
Step Action
