NOTE
Routing to tracks 1–8 is not possible when operating the
as an
audio interface (Stereo Mix).
HINT
Press
to switch between Postfader and Off.
6. Press .
Setting the routing
Set the destination for the slate mic signal.
4. Use to select
Routing
,
and press
.
5. Use to select the tracks/outputs for slate mic
signal routing and press
.
Clear all settings
Set all to postfader
Select postfader
Off
Slate mic/slate tone

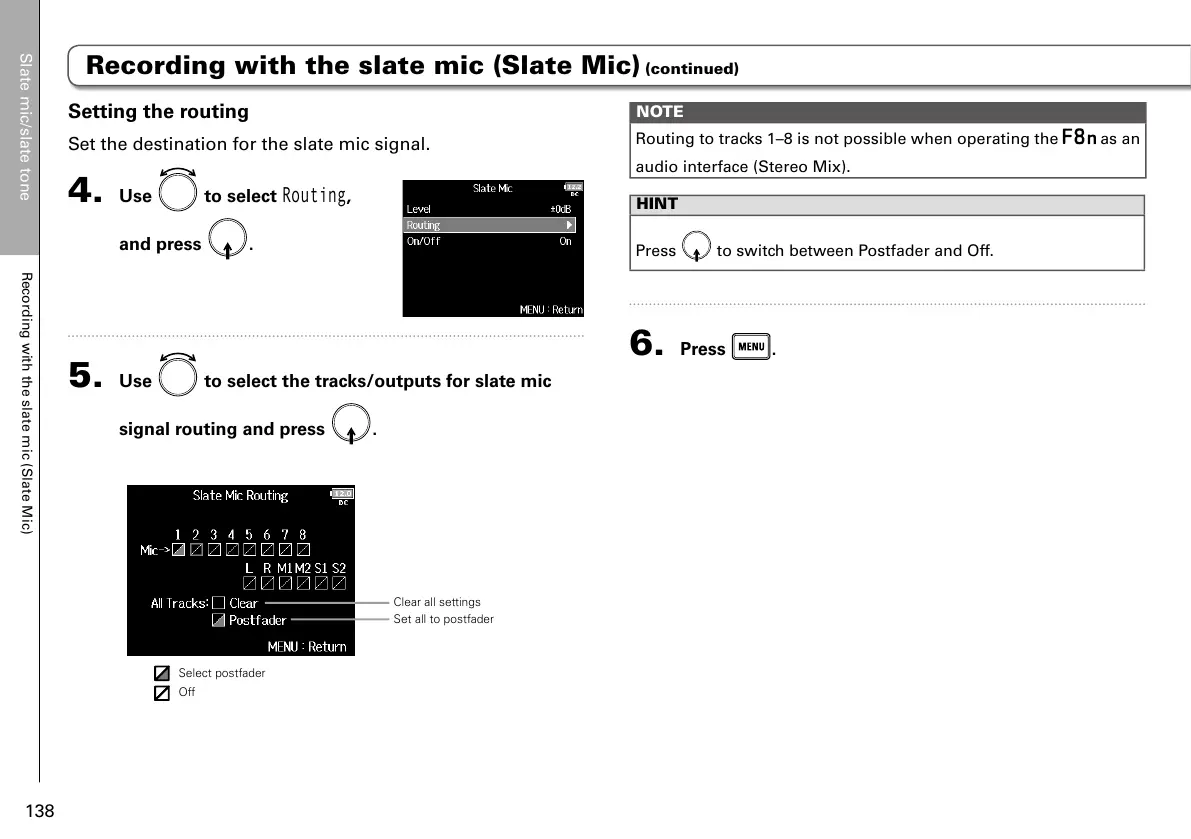

Recording with the slate mic (Slate Mic)
138
Recording with the slate mic (Slate Mic) (continued)
