Zoom F8n User Manual

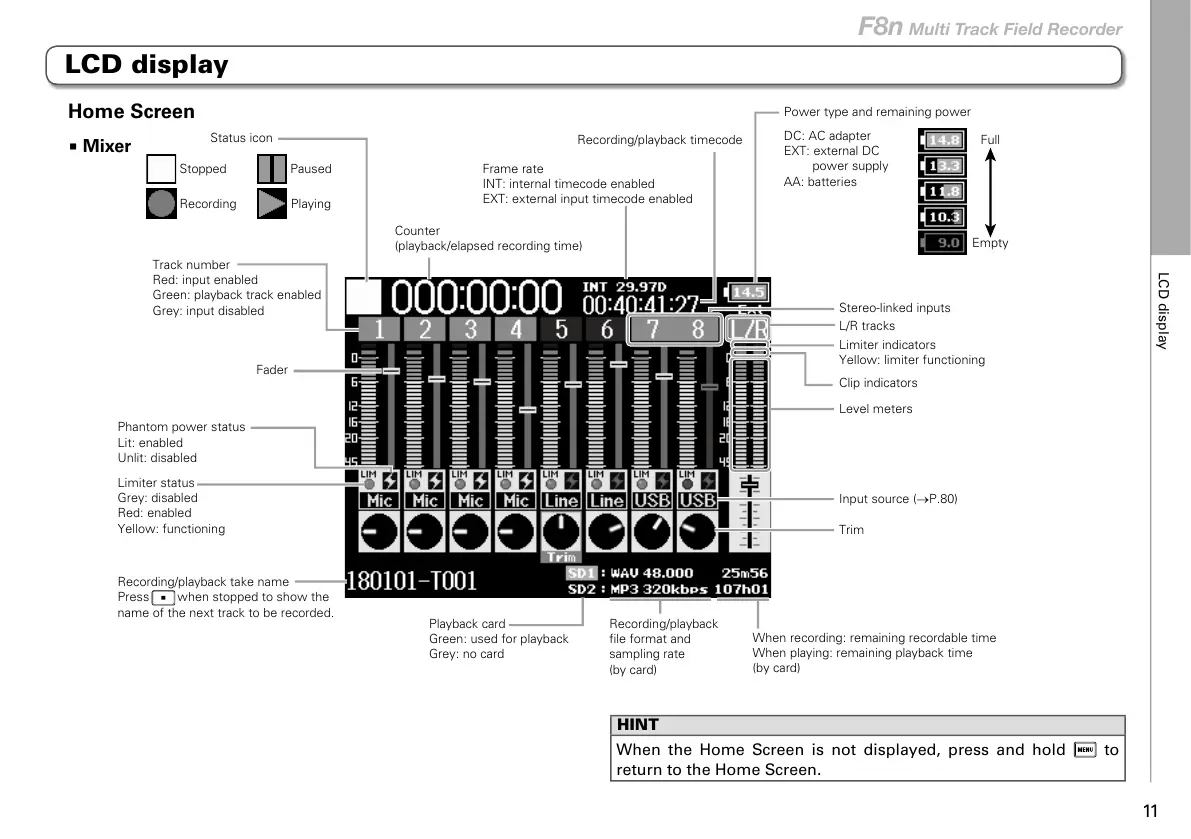

LCD display
11
F8n Multi Track Field Recorder
Recording/playback
file format and
sampling rate
(by card)
When recording: remaining recordable time
When playing: remaining playback time
(by card)
L/R tracks
Fader
Recording/playback take name
Press when stopped to show the
name of the next track to be recorded.
Track number
Red: input enabled
Green: playback track enabled
Grey: input disabled
Playback card
Green: used for playback
Grey: no card
Stopped
Status icon
Recording
Counter
(playback/elapsed recording time)
Frame rate
INT: internal timecode enabled
EXT: external input timecode enabled
Recording/playback timecode
Power type and remaining power
DC: AC adapter
EXT: external DC
power supply
AA: batteries
Full
Empty
Level meters
Input source (→P.80)
Trim
Stereo-linked inputs
Clip indicators
Limiter indicators
Yellow: limiter functioning
Paused
Playing
Limiter status
Grey: disabled
Red: enabled
Yellow: functioning
Phantom power status
Lit: enabled
Unlit: disabled
HINT
When the Home Screen is not displayed, press and hold
to
return to the Home Screen.
Home Screen
■ Mixer
LCD display

Zoom F8n Specifications

General

Product color	Black, Blue
XLR in	Yes
Interface	XLR/TRS
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone input impedance	2000 Ω
Sample rate	192 kHz
Audio quality	24 bit
Frequency range	10 - 80000 Hz

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	178.2 x 140.3 x 54.3 mm
