Zoom F8n User Manual

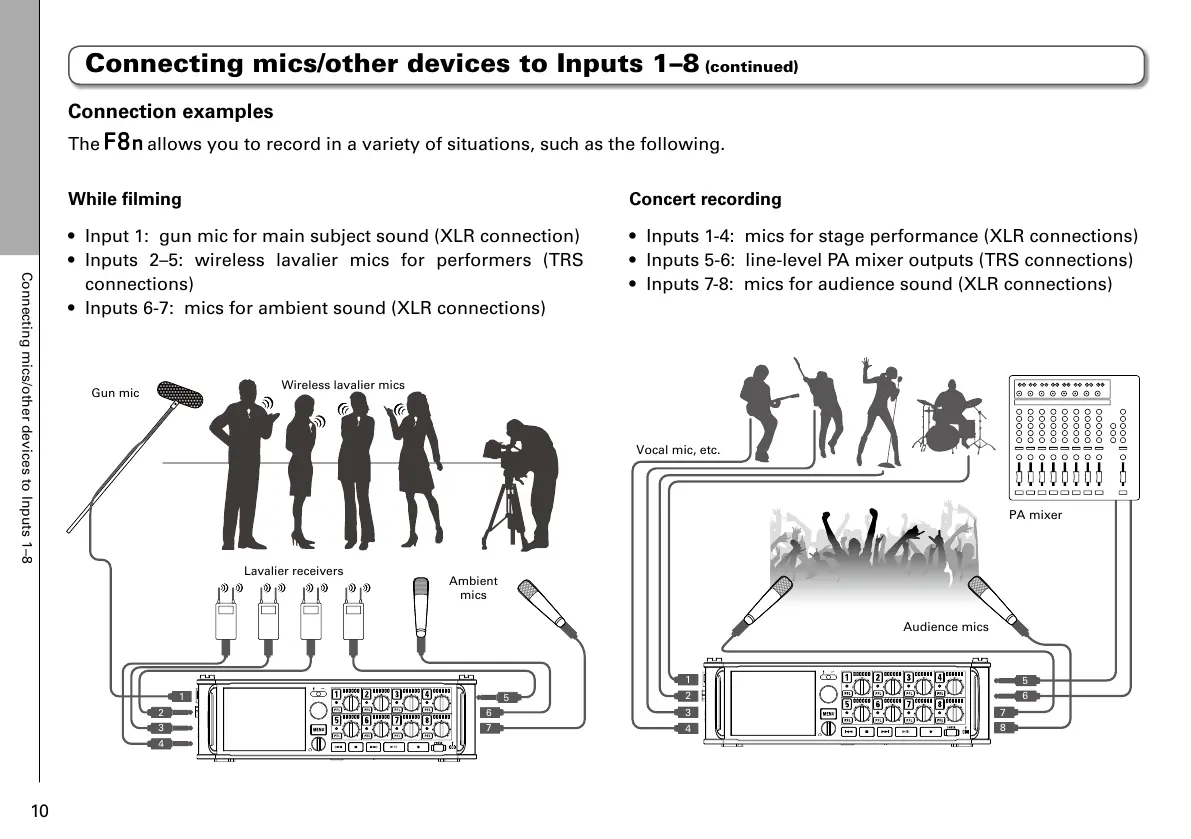

Connecting mics/other devices to Inputs 1–8
10
Concert recording
• Inputs 1-4: mics for stage performance (XLR connections)
• Inputs 5-6: line-level PA mixer outputs (TRS connections)
• Inputs 7-8: mics for audience sound (XLR connections)
PA mixer
Audience mics
Vocal mic, etc.
2
3
4
1
6
7
5
8
While filming
• Input 1: gun mic for main subject sound (XLR connection)
• Inputs 2–5: wireless lavalier mics for performers (TRS
connections)
• Inputs 6-7: mics for ambient sound (XLR connections)
Ambient
mics
Wireless lavalier mics
Gun mic
Lavalier receivers
2
3
4
1
6
7
5
Connection examples
The allows you to record in a variety of situations, such as the following.
Connecting mics/other devices to Inputs 1–8 (continued)

Zoom F8n Specifications

General

Product color	Black, Blue
XLR in	Yes
Interface	XLR/TRS
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone input impedance	2000 Ω
Sample rate	192 kHz
Audio quality	24 bit
Frequency range	10 - 80000 Hz

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	178.2 x 140.3 x 54.3 mm
