Zoom F8n - Input Settings; Input and Output Signal Flow

Input settings

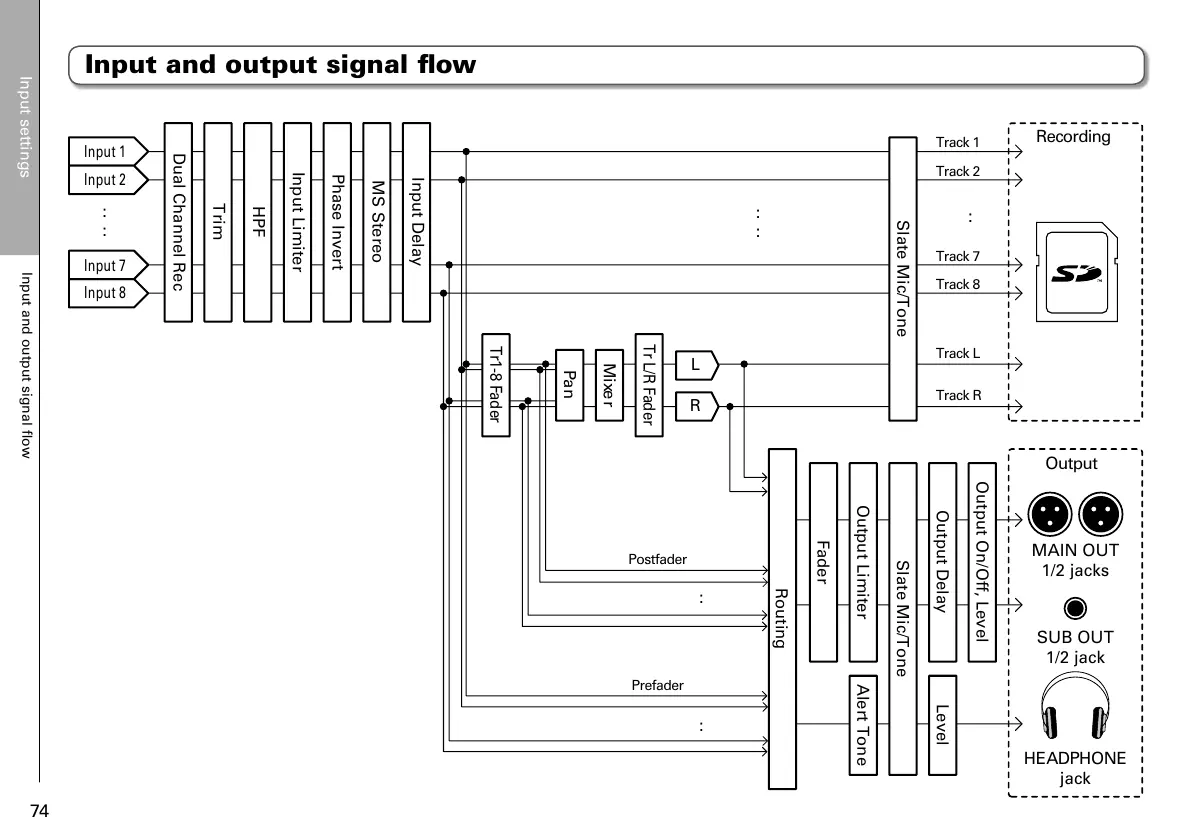

Input and output signal flow
74
Input and output signal flow
MAIN OUT
1/2 jacks
SUB OUT
1/2 jack
HEADPHONE
jack
Recording
Output
Input 1
:
:
Trim
HPF
Input Limiter
Phase Invert
MS Stereo
Input Delay
Tr1-8 Fader
Mixer
L
R
Output Delay Level
Slate Mic/Tone
Output Limiter
Fader
Alert Tone
Slate Mic/Tone
Tr L/R Fader
Routing
:
:
:
:
Output On/Off, Level
Pan
Dual Channel Rec
Input 2
Input 7
Input 8
Track 1
Track 2
Track 7
Track L
Track R
Postfader
Prefader
Track 8
:
