Zoom F8n User Manual

HINT
Phantom power is a function that supplies power to devices that
require an external power supply, including some condenser mics.
The standard power is +48V, but some devices can operate with
lower voltages.
NOTE
Do not use this function with a device that is not compatible with
phantom power. Doing so could damage the device.
1. Press .
2. Use to select INPUT ,
and press
.
3. Use to select Phantom ,
and press
.
▶ Continue to one of the following procedures.
Using phantom power . . . . . . . . . . . . . . . . . . . . . . . . . . . .P.91
Setting the voltage ...............................P.91
Disabling phantom power during playback . . . . . . . . . . .P.92
The can provide phantom power. The voltage can be set to +24V or +48V and it can be turned on/off for each input separately.
Input settings

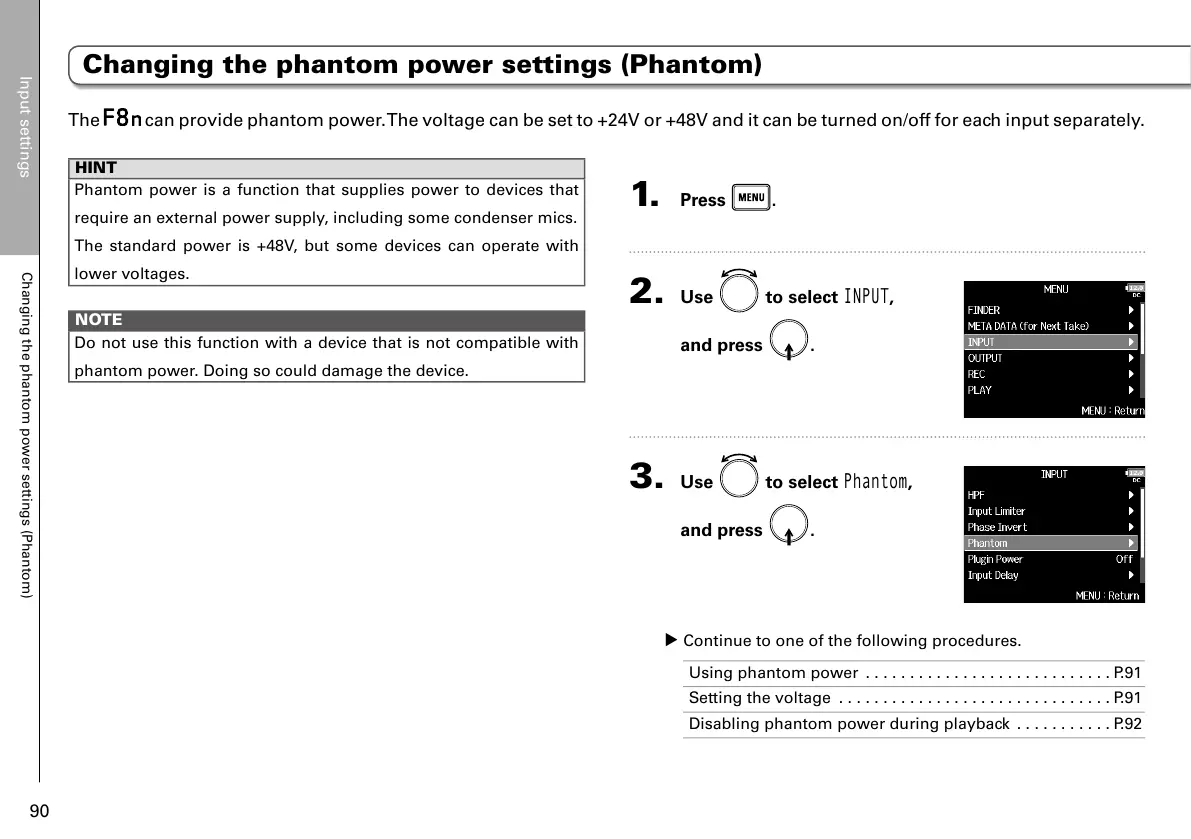

Changing the phantom power settings (Phantom)
90
Changing the phantom power settings (Phantom)

Zoom F8n Specifications

General

Product color	Black, Blue
XLR in	Yes
Interface	XLR/TRS
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone input impedance	2000 Ω
Sample rate	192 kHz
Audio quality	24 bit
Frequency range	10 - 80000 Hz

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	178.2 x 140.3 x 54.3 mm
