Zoom F8n User Manual

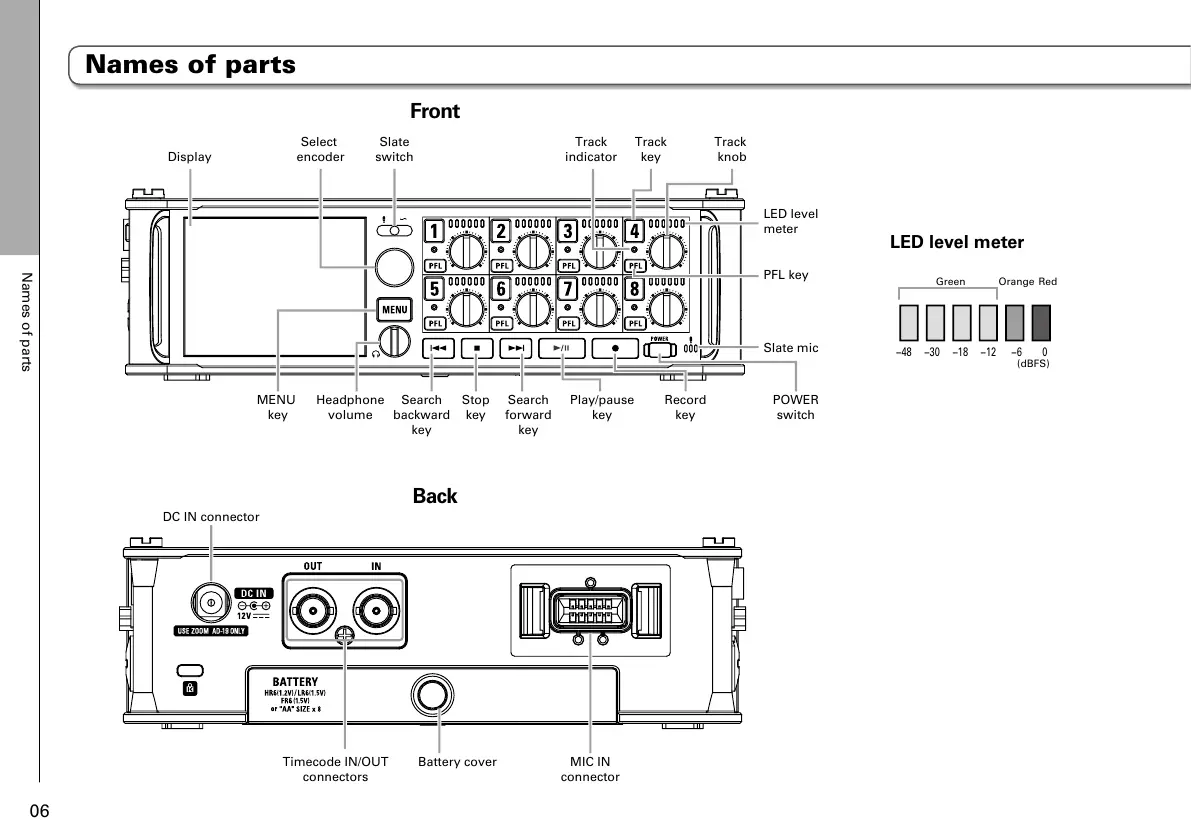

Names of parts
06
Back
Front
Display
Select
encoder
Slate
switch
MENU
key
Headphone
volume
Search
backward
key
MIC IN
connector
Battery coverTimecode IN/OUT
connectors
DC IN connector
Search
forward
key
Play/pause
key
Record
key
POWER
switch
Stop
key
Track
key
Track
indicator
Track
knob
LED level
meter
Slate mic
PFL key
LED level meter
−48
Green Orange Red
−30 −18 −12 −6 0
(dBFS)
Names of parts

Zoom F8n Specifications

General

Product color	Black, Blue
XLR in	Yes
Interface	XLR/TRS
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone input impedance	2000 Ω
Sample rate	192 kHz
Audio quality	24 bit
Frequency range	10 - 80000 Hz

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	178.2 x 140.3 x 54.3 mm
