Zoom F8n User Manual

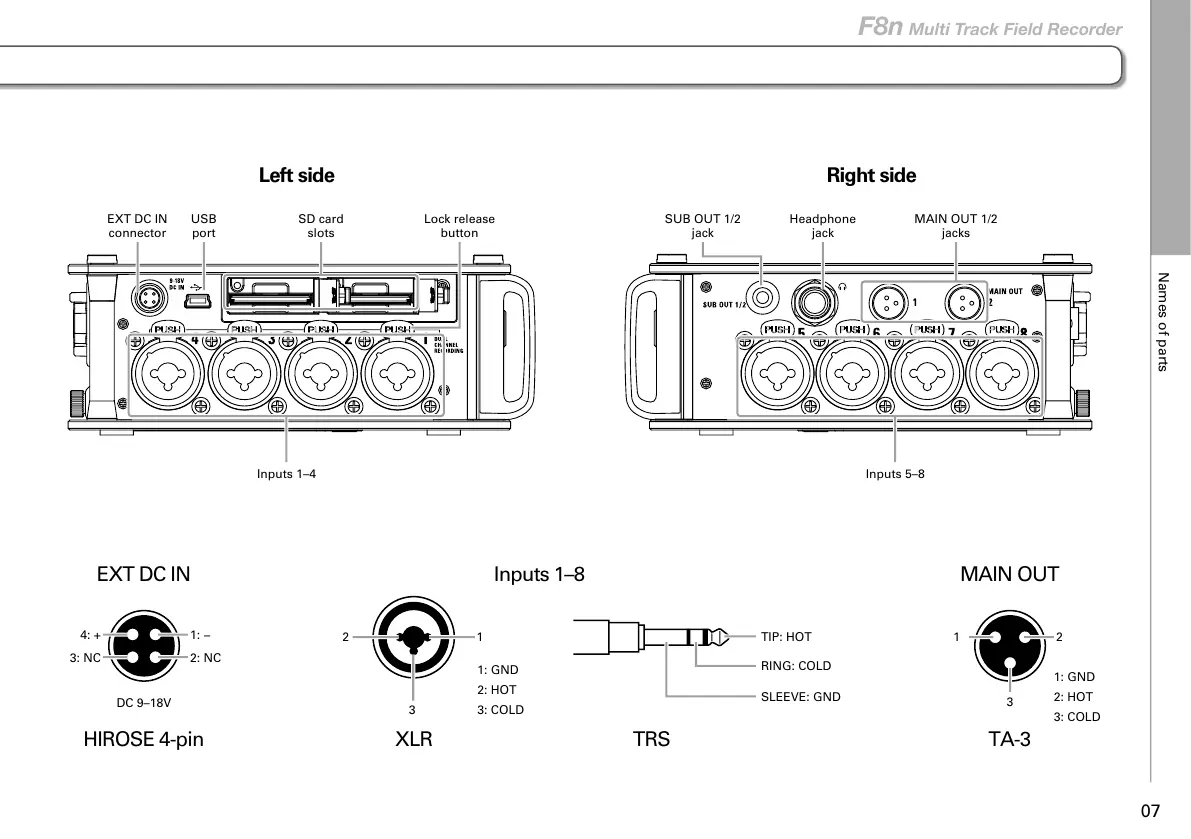

Names of parts
07
F8n Multi Track Field Recorder
Left side
Inputs 1–8EXT DC IN MAIN OUT
XLR TA-3TRS
Right side
1: GND
2: HOT
3: COLD
1: GND
2: HOT
3: COLD
DC 9–18V
HIROSE 4-pin
TIP: HOT
RING: COLD
SLEEVE: GND
EXT DC IN
connector
SUB OUT 1/2
jack
Headphone
jack
USB
port
SD card
slots
Inputs 5–8
Inputs 1–4
MAIN OUT 1/2
jacks
Lock release
button
12
1: −4: +
2: NC3: NC
21
3
3

Zoom F8n Specifications

General

Product color	Black, Blue
XLR in	Yes
Interface	XLR/TRS
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone input impedance	2000 Ω
Sample rate	192 kHz
Audio quality	24 bit
Frequency range	10 - 80000 Hz

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	178.2 x 140.3 x 54.3 mm
