Zoom F8n User Manual

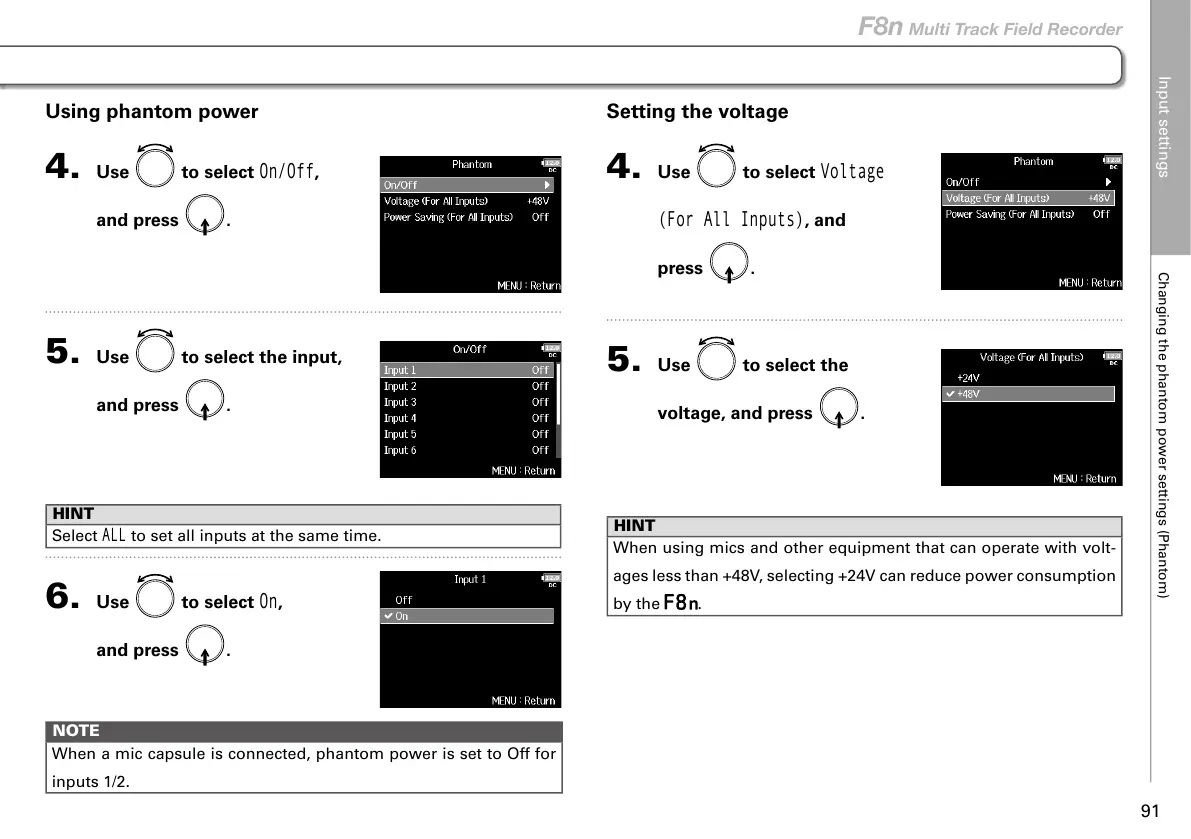

Setting the voltage
4. Use to select Voltage
(For All Inputs)
, and
press
.
5. Use to select the
voltage, and press
.
HINT
When using mics and other equipment that can operate with volt-
ages less than +48V, selecting +24V can reduce power consumption
by the
.
Using phantom power
4. Use to select On/Off ,
and press
.
5. Use to select the input,
and press
.
HINT
Select
ALL to set all inputs at the same time.
6. Use to select On ,
and press
.
NOTE
When a mic capsule is connected, phantom power is set to Off for
inputs 1/2.
Input settings
Changing the phantom power settings (Phantom)
91
F8n Multi Track Field Recorder

Zoom F8n Specifications

General

Product color	Black, Blue
XLR in	Yes
Interface	XLR/TRS
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone input impedance	2000 Ω
Sample rate	192 kHz
Audio quality	24 bit
Frequency range	10 - 80000 Hz

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	178.2 x 140.3 x 54.3 mm
